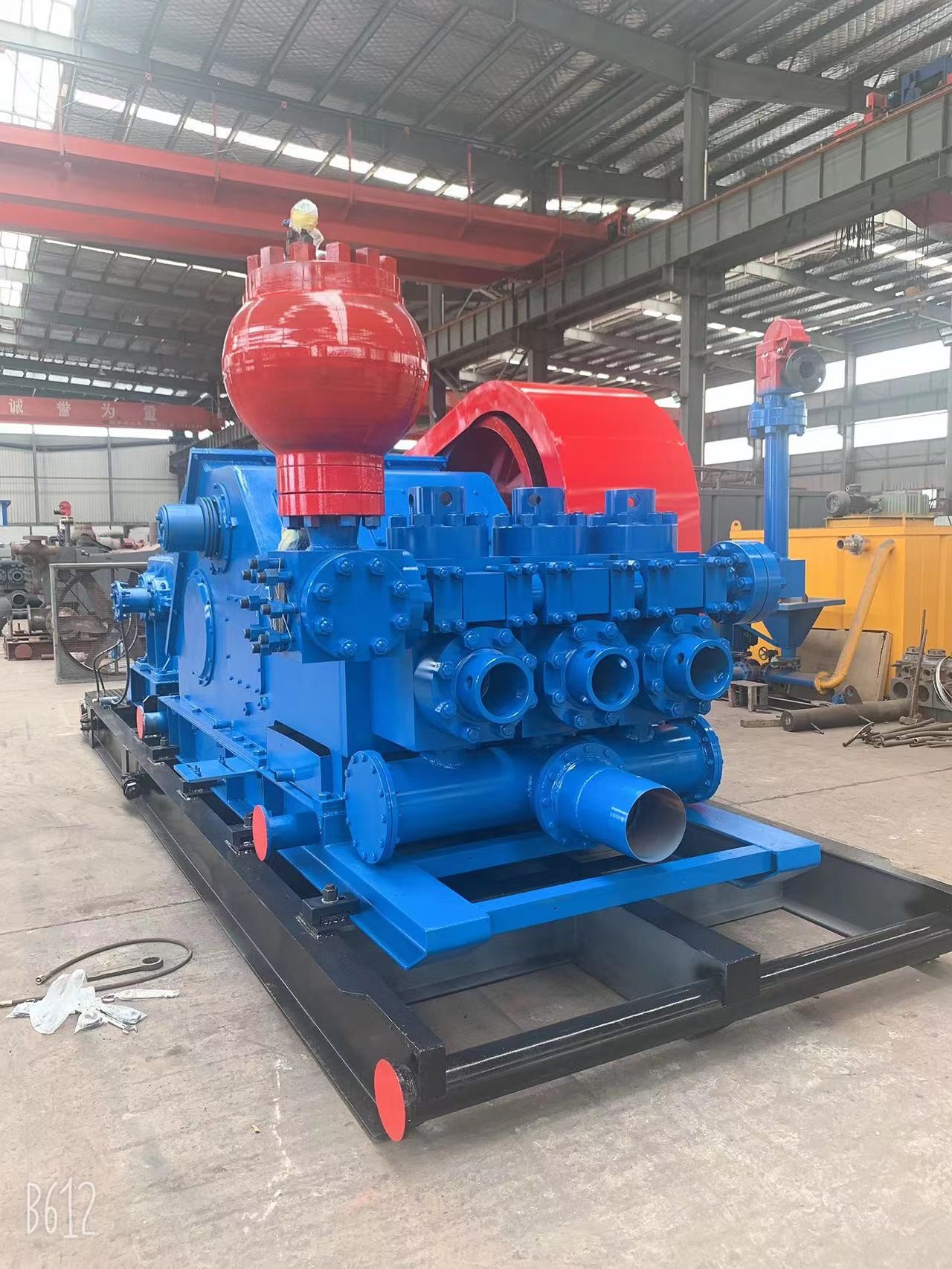

735kw 1000hp Rig Triplex Piston Mud Pump 274mm Stroke
735kw 1000hp Rig Triplex Piston Mud Pump 274mm Stroke
Basic Properties
Country Of Origin
SHANDONGQINGZHOU
Brand Name
XINWEI
Certificate
ISO9001
PRODUCT MODEL
3NB-1000
Trading Properties
MOQ
1
Unit Price
390000
Payment Method
, Western Union
Supply Capacity
1+TAI+30DAY
Product Summary
3NB-1000 Triplex Mud Pump 3NB-1000泥浆泵技术参数表 型号Model 型式Type 输入功率 Input power 额定泵速 Rated pumpSpeed 冲程长度 Stroke length 齿轮传送比 Gear ratio 主动轮额定转速转/分 Drive Wheel Rated speed R/Min 3NB-1000 三缸单作用 Triplex Single-Acting piston pump 735kw 1000(hp) 125冲/分 Stroke/Min 274mm 3.482 435.25 吸入管径Dia.of Suction ...
Product Details
Highlight:
735kw Triplex Piston Mud Pump
,rig mud pump 1000hp
,1000hp Rig Triplex Piston Mud Pump
Product Description
3NB-1000泥浆泵技术参数表
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
||||||||
| 3NB-1000 |
三缸单作用 Triplex Single-Acting piston pump |
735kw 1000(hp) |
125冲/分 Stroke/Min |
274mm | 3.482 | 435.25 | ||||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
||||||||||
| 254mm | 101mm | 3900×2240×2052 | 17500 | 16000 | ||||||||||
性能参数表
| 缸套直径(Cylinder dia) mm | ||||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф120 | Ф130 | ф140 | ф150 | ф160 | ф170 | ф180 | |||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | ||||||||||||||
| 125 | 19.29 | 22.64 | 26.25 | 30.14 | 34.29 | 38.71 | 43.40 | |||||||
| 120 | 18.52 | 21.73 | 25.20 | 28.93 | 32.92 | 37.16 | 41.66 | |||||||
| 110 | 16.97 | 19.92 | 23.10 | 26.52 | 30.17 | 34.06 | 38.19 | |||||||
| 100 | 15.43 | 18.11 | 21.00 | 24.11 | 27.43 | 30.97 | 34.72 | |||||||
| 90 | 13.89 | 16.30 | 18.90 | 21.70 | 24.69 | 27.87 | 31.25 | |||||||
| 泵压Pump pressure(Mpa) | 35 | 33 | 28 | 24 | 21 | 19 | 15 | |||||||
| 机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. | ||||||||||||||
