735kw Triplex Mud Pump 3NB-1000 Drilling Rig Mud Pumps

  • 735kw Triplex Mud Pump 3NB-1000 Drilling Rig Mud Pumps
  • 735kw Triplex Mud Pump 3NB-1000 Drilling Rig Mud Pumps
Place of Origin SHANDONGQINGZHOU
Brand Name XINWEI
Certification ISO9001
Model Number 3NB-1000
Minimum Order Quantity 1
Price 390000
Packaging Details 3900*2280*2052
Payment Terms Western Union, MoneyGram
Supply Ability 1+TAI+30DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

735kw Triplex Mud Pump

,

3NB-1000 Drilling Rig Mud Pumps

,

735kw Drilling Rig Mud Pumps
Leave a Message
Product Description

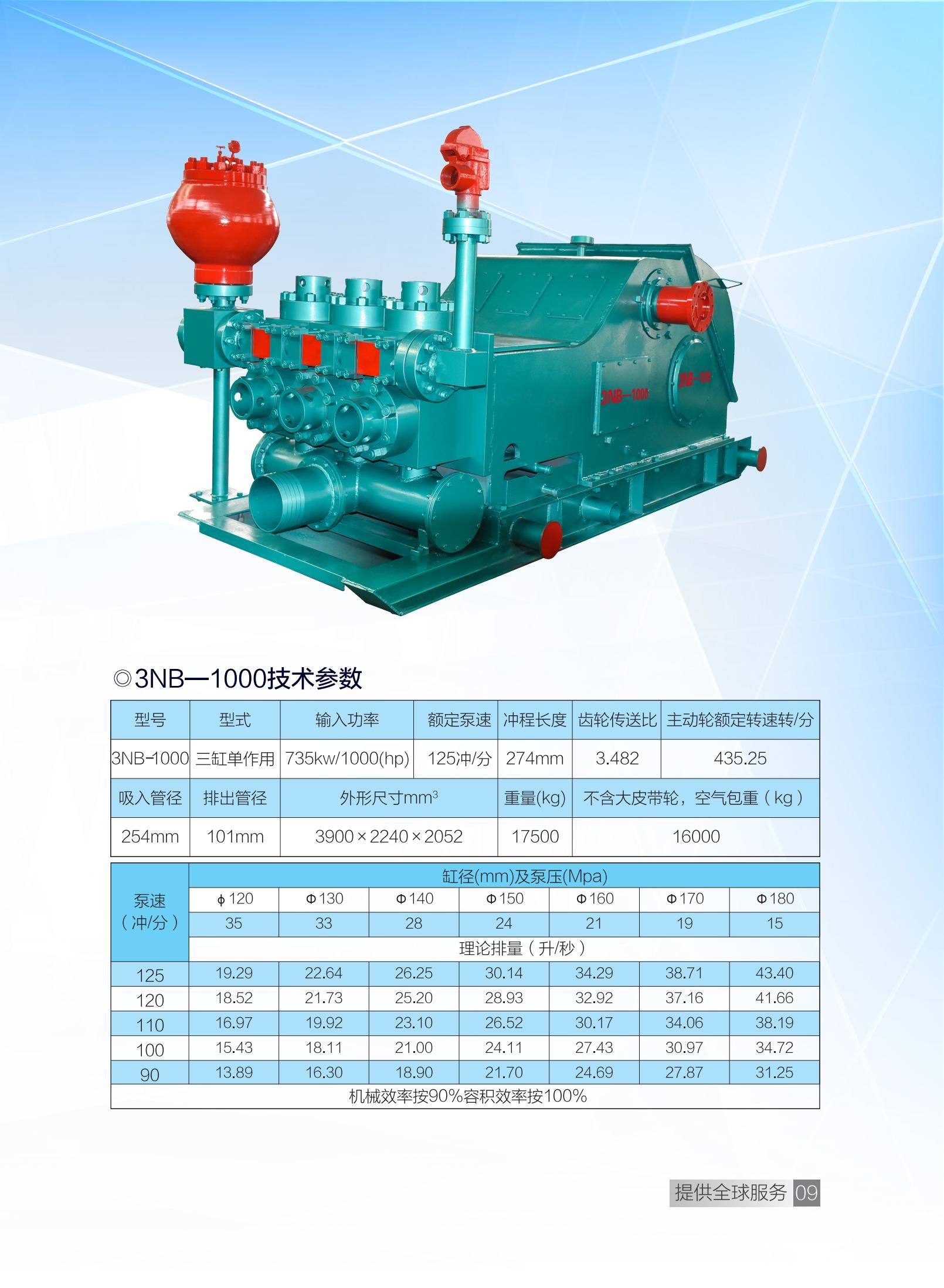

3NB-1000 Triplex Mud Pump

3NB-1000泥浆泵技术参数表



型号Model 型式Type

输入功率

Input power

额定泵速

Rated pumpSpeed

冲程长度

Stroke length

齿轮传送比

Gear ratio

主动轮额定转速转/分

Drive Wheel Rated speed R/Min
3NB-1000

三缸单作用

Triplex Single-Acting piston pump

735kw

1000(hp)

125冲/分

Stroke/Min

 274mm 3.482 435.25
吸入管径Dia.of Suction Manifold 排出管径Dia.of Discharge Manifold

外形尺寸(立方毫米)

Overall size mm3

重量

Weight(kg)

不含大皮带轮,空气包重(kg)

Not including the Big Belt and pulsation Dampener Weight
254mm 101mm 3900×2240×2052 17500 16000



性能参数表


    缸套直径(Cylinder dia) mm

泵速(冲/分)

Pump Speed(Stroke/Min.)

 Ф120 Ф130 ф140 ф150 ф160 ф170 ф180
理论排量(升/秒)Theoratic Displacement(L/S)(GPM)
125 19.29 22.64 26.25 30.14 34.29 38.71 43.40
120 18.52 21.73 25.20 28.93 32.92 37.16 41.66
110 16.97 19.92 23.10 26.52 30.17 34.06 38.19
100 15.43 18.11 21.00 24.11 27.43 30.97 34.72
90 13.89 16.30 18.90 21.70 24.69 27.87 31.25
泵压Pump pressure(Mpa) 35 33 28 24 21 19 15
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
