Product Summary
1300 hp/kw 4300*2450*2513 3NB Series Tripiex Mud Pump 3NB-1300泥浆泵技术参数表 型号Model 型式Type 输入功率 Input power 额定泵速 Rated pumpSpeed 冲程长度 Stroke length 齿轮传送比 Gear ratio 主动轮额定转速转/分 Drive Wheel Rated speed R/Min 3NB-1300 三缸单作用 Triplex Single-Acting piston pump 755kw 1300(hp) 125冲/分 Stroke/Min 305mm 4.194 503 吸...
Product Details
Highlight:
Single Acting Piston Oilfield Mud Pump
,Reciprocating Mud Pump 1300Hp
,Oilfield Reciprocating Mud Pump 1300Hp
Power Pating:
955
Stroke Rating:
120
Stroke Length:
305
Gear Ratio:
4.194
Inlet Dia:
305
Outlet Dia:
101
Product Description

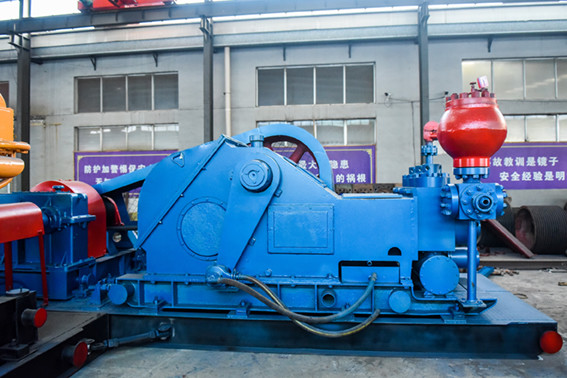

1300 hp/kw 4300*2450*2513 3NB Series Tripiex Mud Pump
3NB-1300泥浆泵技术参数表
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
||||||||
| 3NB-1300 |
三缸单作用 Triplex Single-Acting piston pump |
755kw 1300(hp) |
125冲/分 Stroke/Min |
305mm | 4.194 | 503 | ||||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
||||||||||
| 305mm | 101mm | 4300×2450×2513 | 21500 | 20000 | ||||||||||
|
性能参数表
|
||||||||||||||
| 缸套直径(Cylinder dia) mm | ||||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф130 | Ф140 | ф150 | ф160 | ф170 | ф180 | ф190 | |||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | ||||||||||||||
| 120 | 24.28 | 28.16 | 32.32 | 36.78 | 41.52 | 46.54 | 51.86 | |||||||
| 110 | 22.25 | 25.81 | 29.63 | 33.71 | 38.06 | 42.67 | 47.54 | |||||||
| 100 | 20.23 | 23.46 | 26.94 | 30.65 | 34.60 | 38.79 | 43.22 | |||||||
| 90 | 18.21 | 21.12 | 24.24 | 27.58 | 31.14 | 34.91 | 38.89 | |||||||
| 80 | 16.19 | 18.77 | 21.55 | 24.52 | 27.68 | 31.03 | 34.57 | |||||||
| 泵压Pump pressure(Mpa) | 35 | 31 | 27 | 24 | 21 | 19 | 17 | |||||||
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
