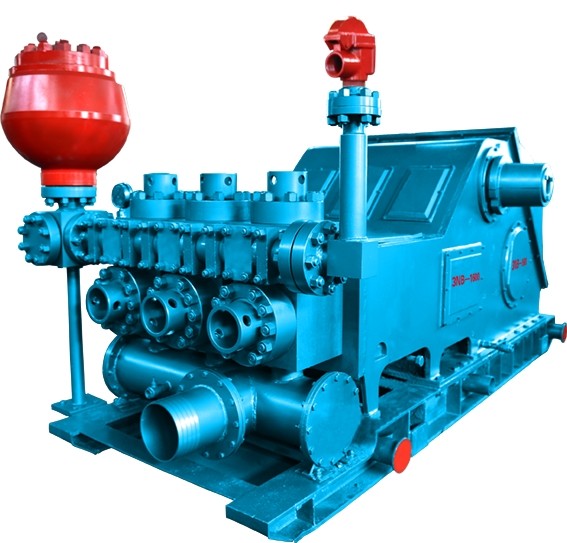

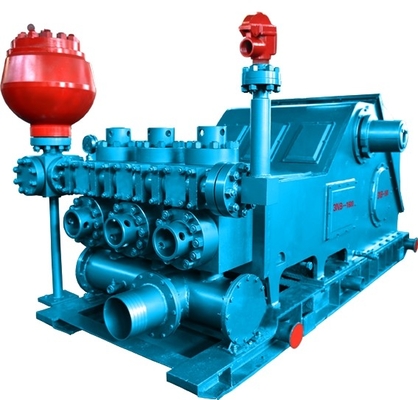

3NB1600 Reciprocating Mud Pump 1176kw 1600hp Drilling Mud Pump
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | 3NB1600 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rating | 1176 | Stroke Rating | 120 |
|---|---|---|---|
| Stroke Length | 305 | Gear Ratio | 3.657 |
| Inlet Dia | 309 | Outlet Dia | 128 |
| Highlight | 3NB1600 Reciprocating Mud Pump,1176kw 1600hp Drilling Mud Pump,3NB1600 Drilling Mud Pump |
||
Product Description
1600 hp/kw 5500*2822*2660 3NB Series Tripiex Mud Pump
3NB-1600泥浆泵技术参数表
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
|||||||
| 3NB-1600 |
三缸单作用 Triplex Single-Acting piston pump |
1176kw 1600(hp) |
125冲/分 Stroke/Min |
305mm | 3.657 | 438.84 | |||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
|||||||||
| 309mm | 128mm | 5500×2822×2690 | 27100 | 25560 | |||||||||
|
性能参数表
|
|||||||||||||
| 缸套直径(Cylinder dia) mm | |||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф140 | Ф150 | Ф160 | ф170 | ф180 | ф190 | |||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | |||||||||||||
| 120 | 28.16 | 32.32 | 36.78 | 41.52 | 46.54 | 51.86 | |||||||
| 110 | 25.81 | 29.63 | 33.71 | 38.06 | 42.67 | 47.54 | |||||||
| 100 | 23.46 | 26.94 | 30.65 | 34.60 | 38.79 | 43.22 | |||||||
| 90 | 21.12 | 24.24 | 27.58 | 31.14 | 34.91 | 38.89 | |||||||
| 80 | 18.77 | 21.55 | 24.52 | 27.68 | 31.03 | 34.57 | |||||||
| 泵压Pump pressure(Mpa) | 35 | 33 | 29 | 26 | 23 | 21 | |||||||
| 机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. | |||||||||||||
