500 hp/kw 3600*2230*2080 3NB Series Tripiex Mud Pump 3NB-500泥浆泵技术参数表 型号Model 型式Type 输入功率 Input power 额定泵速 Rated pumpSpeed 冲程长度 Stroke length 齿轮传送比 Gear ratio 主动轮额定转速转/分 Drive Wheel Rated speed R/Min 3NB-500 三缸单作用 Triplex Single-Acting piston pump 368kw 500(hp) 135冲/分 Stroke/Min 196mm 4.696 633.96 吸入...
Product Details
Highlight:
500hp Triplex Oil Mud Pump
,Mud Pump Well Drilling 3NB Series
,368kw Mud Pump Well Drilling
Power Rating:
368
Stroke Rating:
120
Stroke Length:
180
Gear Ratio:
4.696
Inlet Dia:
203
Outlet Dia:
83
Product Description

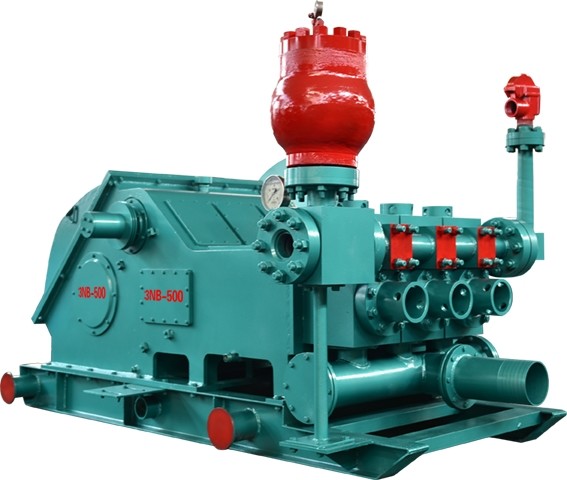

500 hp/kw 3600*2230*2080 3NB Series Tripiex Mud Pump

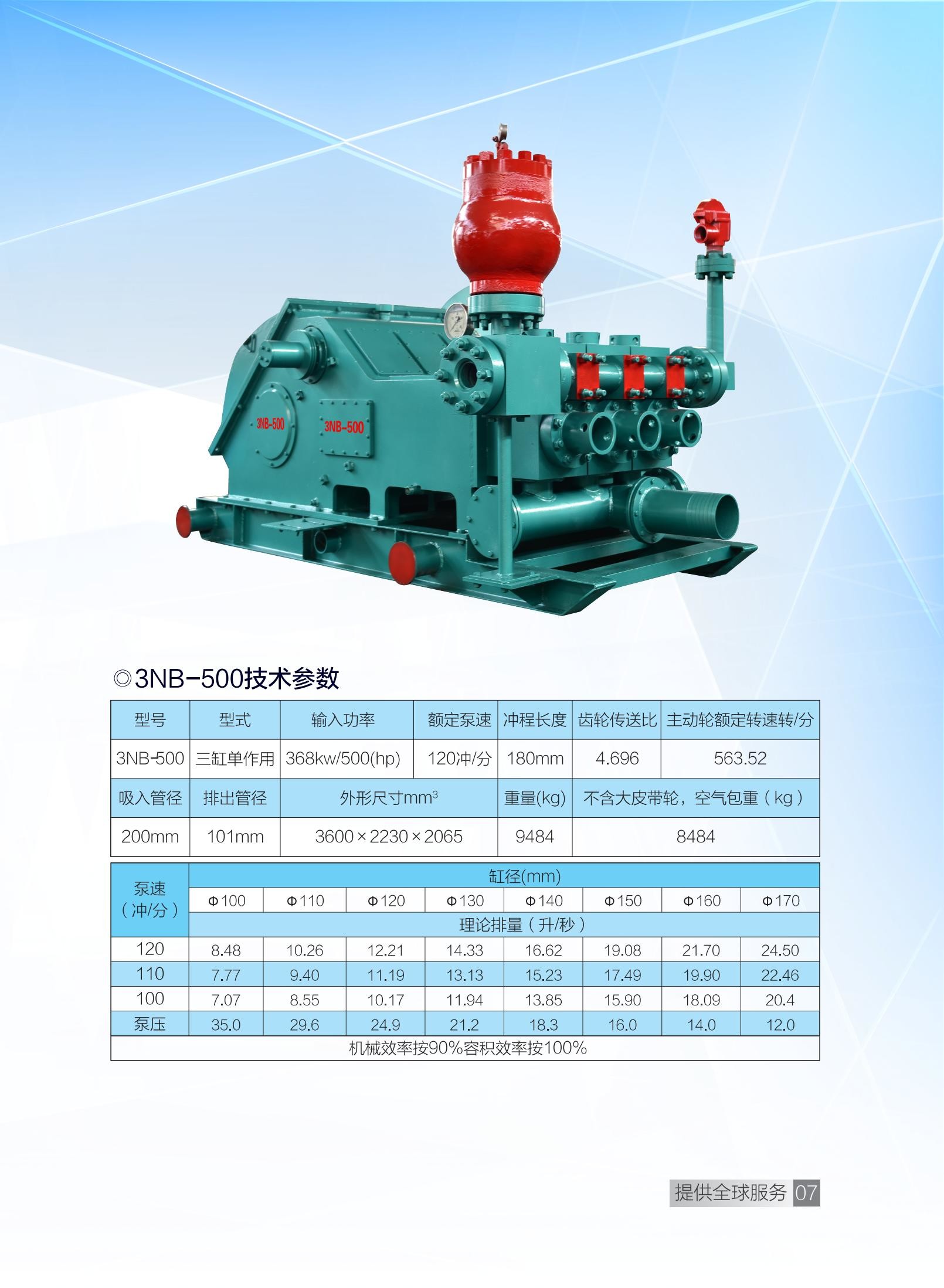

3NB-500泥浆泵技术参数表
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
|||||||||||
| 3NB-500 |
三缸单作用 Triplex Single-Acting piston pump |
368kw 500(hp) |
135冲/分 Stroke/Min |
196mm | 4.696 | 633.96 | |||||||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
|||||||||||||
| 203mm | 83mm | 3600×2230×2080 | 11000 | 10000 | |||||||||||||
性能参数表
| 缸套直径(Cylinder dia) mm | |||||||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
ф100 | ф110 | ф120 | ф130 | ф140 | ф150 | ф160 | ф170 | |||||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | |||||||||||||||||
| 135 | 10.39 | 12.57 | 14.96 | 17.55 | 20.36 | 23.37 | 26.59 | 30.01 | |||||||||
| 120 | 9.23 | 11.17 | 13.29 | 15.60 | 18.09 | 20.77 | 23.63 | 26.68 | |||||||||
| 110 | 8.46 | 10.24 | 12.19 | 14.30 | 16.59 | 19.04 | 21.66 | 24.46 | |||||||||
| 100 | 7.69 | 9.31 | 11.08 | 13.00 | 15.08 | 17.31 | 19.69 | 22.23 | |||||||||
| 泵压Pump pressure(Mpa) | 35.0 | 29.6 | 24.9 | 21.2 | 18.3 | 16.0 | 14.0 | 12.0 | |||||||||
| 机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. | |||||||||||||||||
