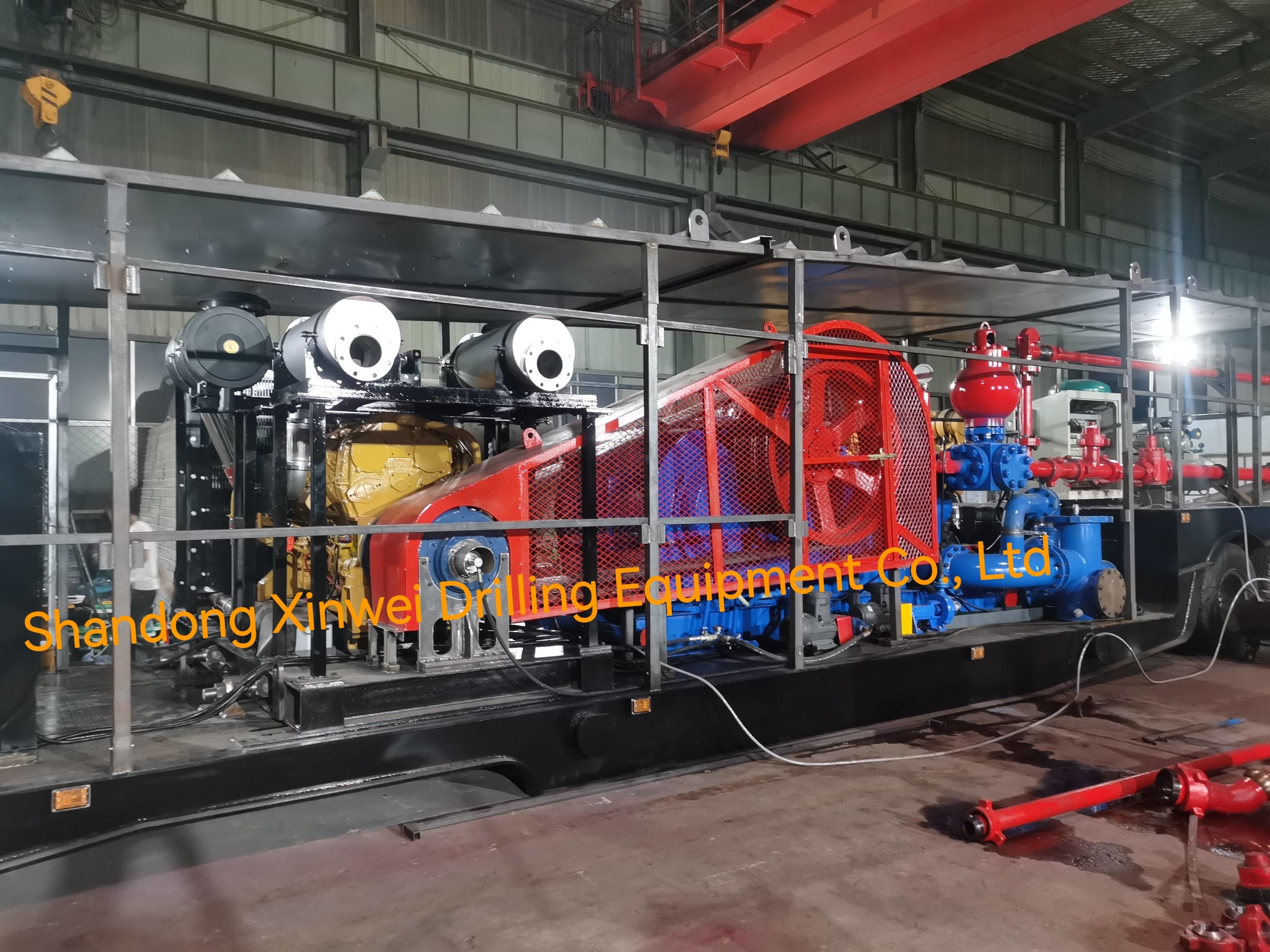

800hp 597kw F Series Triplex Piston Mud Pump 3963*2025*2410
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-800 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rating | 597 | Stroke Rating | 150 |
|---|---|---|---|
| Stroke Length | 9“/228.6 | Gear Ratio | 4.185 |
| Inlet Dia | 10“/254 | Outlet Dia | 5-1/8"Flange 5000psi |
| Highlight | 597kw F Series Mud Pump Triplex,597kw triplex piston mud pump,triplex piston mud pump 800hp |
||
Product Description
800 hp/kw 3963*2025*2410 F-Series Triplex Mud Pump
- F-800 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | ||||||||
|
Rated Input Power (KW/HP) |
597/800 | Gear Ratio | 4.185:1 | ||||||||
| Rated Stroke (SPM) | 150 | Lubrication | Forced & Splashing | ||||||||
| Stroke Length (mm/in) | 228.6/9〃 | Valve Cavity | API-6# | ||||||||
| Inlet Connection | 10〃(254mm) | Outlet Connection | 5 1/8〃Flange 5000PSI | ||||||||
| Weight(Kg/Pound) | 14500/31970 |
Overall Dimension (L×W×H) |
3963×3146×2321mm | ||||||||
| SPM | Rated Power | Liner Dia.(in) and Pressure Rating (Mpa)/(psi) | |||||||||
| 6-3/4 | 6-1/2 | 6-1/4 | 6 | 5-1/2 | 5 | 4-1/2 | 4 | ||||
|
13.56 1965 |
14.63 2120 |
15.82 2295 |
17.16 2490 |
20.43 2965 |
24.72 3585 |
30.51 4425 |
35 5075 |
||||
| HP | KW | ||||||||||
| Displacement (L/S)/(gpm) | |||||||||||
| 150 | 800 | 597 |
39.58 627 |
36.70 582 |
33.94 538 |
31.27 496 |
26.28 417 |
21.72 344 |
17.59 279 |
13.90 220 |
|
| 140 | 747 | 557 |
36.94 586 |
34.26 543 |
31.67 502 |
29.19 463 |
24.53 389 |
20.27 321 |
16.42 260 |
12.97 206 |
|
| 130 | 693 | 517 |
34.30 544 |
31.81 504 |
29.41 466 |
27.10 430 |
22.78 361 |
18.82 298 |
15.25 242 |
12.05 191 |
|
| 120 | 640 | 477 |
31.67 502 |
29.36 465 |
27.15 430 |
25.02 397 |
21.02 333 |
17.37 275 |
14.07 223 |
11.12 176 |
|
| 110 | 587 | 438 |
29.03 460 |
26.92 427 |
24.89 395 |
22.93 363 |
19.27 305 |
15.93 252 |
12.90 204 |
10.19 162 |
|
| Based on 100% volumetric efficiency and 90% mechanical efficiency | |||||||||||
