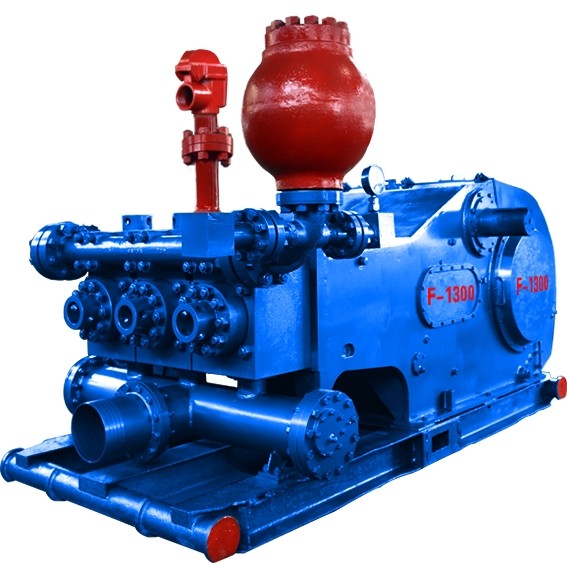

F Series Triplex Piston Mud Pump 1300hp Triplex Pump Oil And Gas
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-1300 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rating | 969 | Stroke Rating | 120 |
|---|---|---|---|
| Stroke Length | 12"/305 | Gear Ratio | 4.206 |
| Inlet Dia | 12"/305 | Outlet Dia | 5-1/8" Flange 5000psi |
| Highlight | F Series Triplex Piston Mud Pump,Triplex Pump Oil And Gas 1300hp,Triplex Piston Mud Pump 1300hp |
||
Product Description
1300 hp/kw 4617*3260*2600 F-Series Cementing Pump
F-1300 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | |||||||||
|
Rated Input Power (KW/HP) |
969/1300 | Gear Ratio | 4.206:1 | |||||||||
| Rated Stroke (SPM) | 120 | Lubrication | Forced & Splashing | |||||||||
| Stroke Length (mm/in) | 305/12〃 | Valve Cavity | API-7# | |||||||||
| Inlet Connection | 12〃(305mm) | Outlet Connection | 5 1/8〃Flange 5000PSI | |||||||||
| Weight(Kg/Pound) | 24572/54170 |
Overall Dimension (L×W×H) |
4615×3276×2688mm 181.8〃×128〃×102.4〃 |
|||||||||
| SPM | Rated Power | Liner Dia.(in) and Pressure Rating (Mpa / psi) | ||||||||||
| 7 | 6-3/4 | 6-1/4 | 6 | 5-1/2 | 5 | |||||||
|
19.17 2780 |
20.65 2994 |
24.07 3490 |
26.16 3793 |
31.13 4539 |
35 5075 |
|||||||
| HP | KW | |||||||||||
| Displacement (L/S)/(gpm) | ||||||||||||
| 120 | 1300 | 969 |
45.41 720 |
42.23 669 |
36.20 574 |
33.36 529 |
28.04 444 |
23.17 367 |
||||
| 110 | 1192 | 883 |
41.63 660 |
38.71 614 |
33.19 526 |
30.58 485 |
25.70 407 |
21.24 337 |
||||
| 100 | 1083 | 803 |
37.84 600 |
35.19 558 |
30.17 478 |
27.80 441 |
23.36 370 |
19.31 306 |
||||
| 90 | 975 | 727 |
34.06 540 |
31.67 502 |
27.15 430 |
25.02 397 |
21.03 333 |
17.38 275 |
||||
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||||||
