Herringbone Gear API-6 Triplex Mud Pump Oil And Gas 746KW

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Power Rating	746	Stroke Rating	140
Stroke Length	10"/254	Gear Ratio	4.207
Inlet Dia	12"/305	Outlet Dia	5-1/8" Flange 5000psi
Highlight	API-6 Triplex Mud Pump , Triplex Mud Pump Oil And Gas , triplex pump oil and gas 746KW

Leave a Message

Product Description

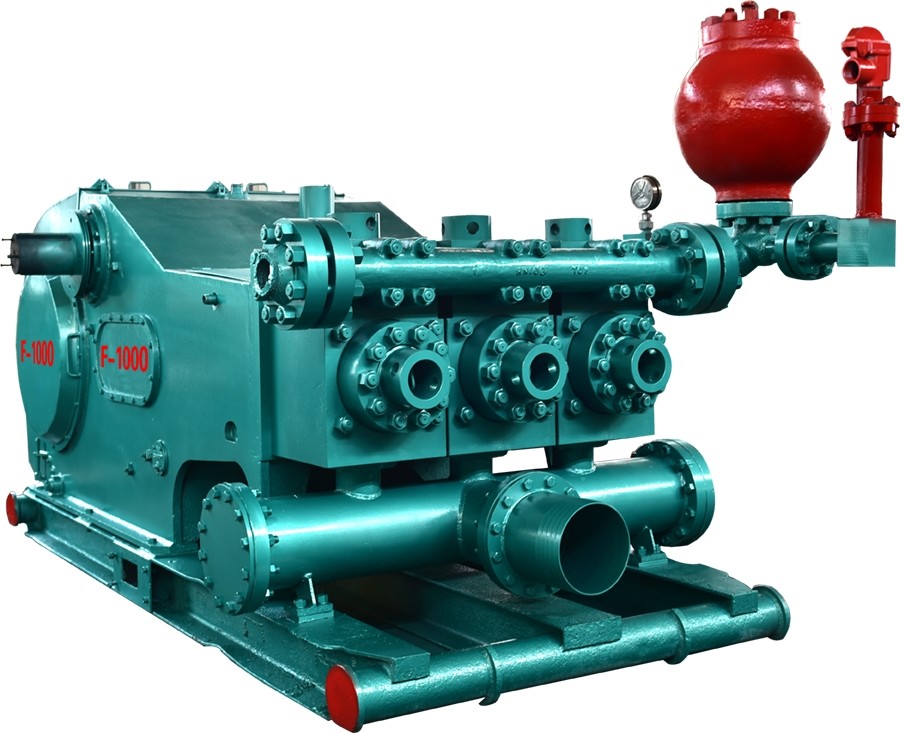

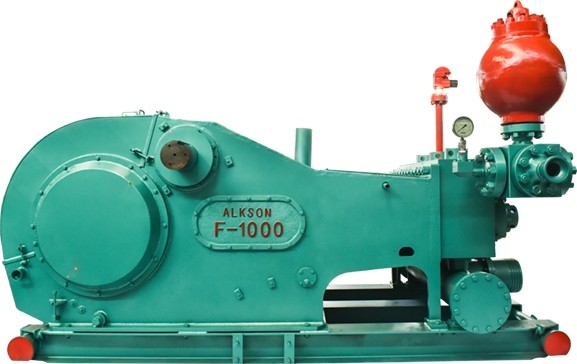

1000 hp/kw 4267*3167*2580 F-Series Triplex Mud Pump

Type				Horizontal Triplex Single Acting Piston Pump			Gear Type			Herringbone Gear
Rated Input Power (KW/HP)				746/1000			Gear Ratio			4.207:1
Rated Stroke (SPM)				140			Lubrication			Forced & Splashing
Stroke Length (mm/in)				254/10〃			Valve Cavity			API-6#
Inlet Connection				12〃(305mm)			Outlet Connection			5 1/8〃Flange 5000PSI
Weight(Kg/Pound)				18790/41425			Overall Dimension (L×W×H)			4267×3167×2580mm 168〃×124.7〃×101.6〃
SPM	Rated Power		Liner Dia. (in) and Pressure Rating (Mpa / psi)
			6-3/4		6-1/2	6-1/4		6	5-1/2		5	4-1/2	4
			16.35 2370		17.63 2555	19.07 2765		20.69 3000	24.62 3570		29.79 4320	35 5075	35 5075
	HP	KW
			Displacement (L/S)/(gpm)
140	1000	746	41.05 651		38.06 603	35.19 558		32.43 514	27.25 432		22.52 357	18.24 289	14.41 228
130	929	692	38.12 604.2		35.35 560	32.68 518		30.12 477	25.31 401		20.91 331	16.94 269	13.39 212
120	857	639	35.18 558		32.63 517	30.16 478		27.80 441	23.36 370		19.31 306	15.64 248	12.36 196
110	786	596	32.25 511		29.91 474	27.65 438		25.48 404	21.41 339		17.70 281	14.33 227	11.33 180
100	714	533	29.32 465		27.19 431	25.14 398		23.17 367	19.47 309		16.09 255	13.03 207	10.30 163
Based on 100% volumetric efficiency and 90% mechanical efficiency
