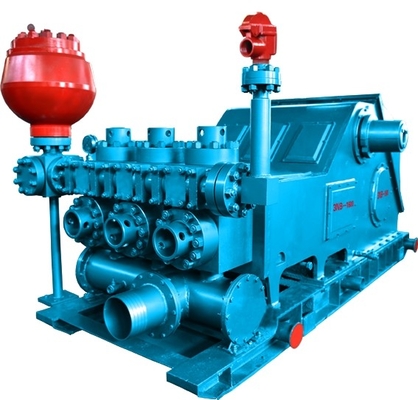

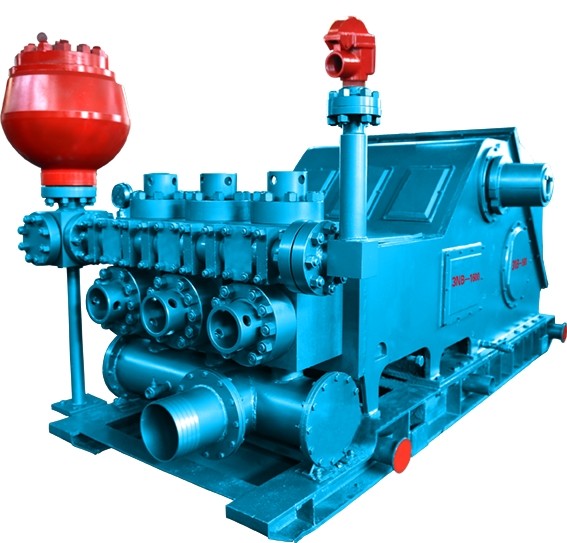

1600hp 3NB Series Oilwell Triplex Cementing Pump 5500*2822*2660
1600hp 3NB Series Oilwell Triplex Cementing Pump 5500*2822*2660
Basic Properties
Country Of Origin
China
Brand Name
XW
Certificate
ISO9000
PRODUCT MODEL
3NB1600
Trading Properties
MOQ
1
Payment Method
T/T
Product Summary
1600 hp/kw 5500*2822*2660 3NB Series Cementing Pump 型号Model 型式Type 输入功率 Input power 额定泵速 Rated pumpSpeed 冲程长度 Stroke length 齿轮传送比 Gear ratio 主动轮额定转速转/分 Drive Wheel Rated speed R/Min 3NB-1600 三缸单作用 Triplex Single-Acting piston pump 1176kw 1600(hp) 125冲/分 Stroke/Min 305mm 3.657 438.84 吸入管径Dia.of ...
Product Details
Highlight:
3NB Series Oilwell Triplex Cementing Pump
,oilwell triplex pumps 1600hp
,1600hp Triplex Cementing Pump
Power Rating:
1176
Stroke Rating:
120
Stroke Length:
305
Gear Ratio:
3.657
Inlet Dia:
309
Outlet Dia:
128
Product Description
1600 hp/kw 5500*2822*2660 3NB Series Cementing Pump
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
|||||||
| 3NB-1600 |
三缸单作用 Triplex Single-Acting piston pump |
1176kw 1600(hp) |
125冲/分 Stroke/Min |
305mm | 3.657 | 438.84 | |||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
|||||||||
| 309mm | 128mm | 5500×2822×2690 | 27100 | 25560 | |||||||||
|
性能参数表 |
|||||||||||||
| 缸套直径(Cylinder dia) mm | |||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф140 | Ф150 | Ф160 | ф170 | ф180 | ф190 | |||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | |||||||||||||
| 120 | 28.16 | 32.32 | 36.78 | 41.52 | 46.54 | 51.86 | |||||||
| 110 | 25.81 | 29.63 | 33.71 | 38.06 | 42.67 | 47.54 | |||||||
| 100 | 23.46 | 26.94 | 30.65 | 34.60 | 38.79 | 43.22 | |||||||
| 90 | 21.12 | 24.24 | 27.58 | 31.14 | 34.91 | 38.89 | |||||||
| 80 | 18.77 | 21.55 | 24.52 | 27.68 | 31.03 | 34.57 | |||||||
| 泵压Pump pressure(Mpa) | 35 | 33 | 29 | 26 | 23 | 21 | |||||||
|
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. |
|||||||||||||
