HDD Mud Cementing Pump HDD Mud Recycling System 2800hp

Place of Origin China
Brand Name XW
Certification ISO9000
Model Number NB2800
Minimum Order Quantity 1
Delivery Time 30
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Trip 180 Cylinder Diameter 220
Flow(L/min) 800-3500 Pressure(Mpa) 5-20
Input Power(KW) 300 Mass(kg) 12000
Highlight

HDD Mud Cementing Pump

,

HDD Mud Recycling System 2800hp

,

2800hp HDD Mud Pump

Leave a Message
Product Description

2800 hp/kw HDD Mud Pump HDD Mud Recycling System Cementing Pump

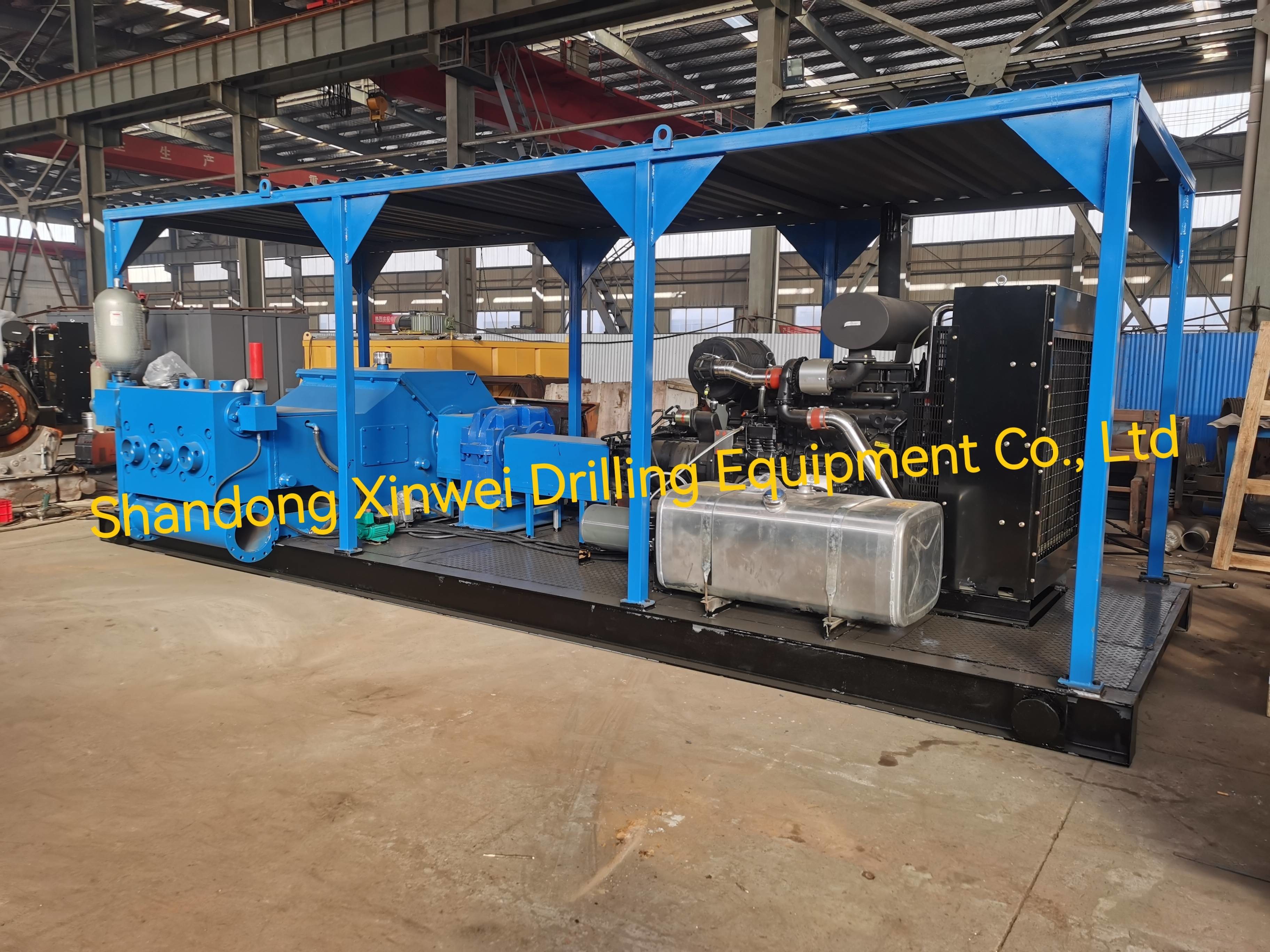

QZNB-2800 mud pump is a horizontal three-cylinder reciplrocating single acting piston pump, which is driven by diesel engine, equipped with manual shift transmission and wireless renote control.It is mainly used for matching with trenchless drilling rig of more than 200 tons, and can also be used for grouting, mine drainage and long-distance water delivery and other purposes. The pump has five flow rates and five pressures, with a wide range of flow and pressure, and can be used for drilling and towing with different pore sizes. The pump according to the drilling punp design specification and API standard design and manufacture, casing is made of high strength steel plate welding, connecting rod cross rolling bearing, the service life of the higher than that of shell design, cylinder liner with double metal structure, inner sleeve using high silicon and high chromium alloy, hardness of HRC62°above, increases the service life of componelts,Reduce the loss of components and other features.

Shandong Xinwei Drilling Equipment Co.,Ltd

Serial No.: Ex-Date:

Qingzhou NB-2800 Mud Pump Technical Specification
Power(kw) 350 Stroke Length(mm) 180 Reduction Ratio 1:2
Liner Size(mm) 220 Flow Rate(L/R) 20.52 Rated Stroke(spm) 120
Stroke(spm) 60 80 100 120 140
Flow Rate(L/min) 1231 1641 2052 2462 2872
Pressure(MPa) 10.0 7.5 6.0 5.0 4.4
Dimension(mm) LxWxH:7200x2250x2500 Weight(kgs) 12000

HDD Mud Cementing Pump HDD Mud Recycling System 2800hp 0HDD Mud Cementing Pump HDD Mud Recycling System 2800hp 1HDD Mud Cementing Pump HDD Mud Recycling System 2800hp 2HDD Mud Cementing Pump HDD Mud Recycling System 2800hp 3

Shandong XinWEI DRILLING EQUIPMENT Co., Ltd. is one of the most well-known manufacturers of trenchless equipment and oilfield equipment in China. After years of unremitting efforts, it has grown into a small but powerful enterprise. Our products cover the entire field, trenchless, from a very small spare part to a very large complete rig system. Our MAIN PRODUCTS are: pump SPARE parts, mud pumps and complete sets of equipment, DC/AC motor, solid control equipment, power plant, vehicle drilling rig, workover rig, land drilling rig, drill pipe and drilling tools, etc. Based on the needs of customers, to provide customers with the best products and services. We focus on providing the best solutions for the maintenance and supply of equipment and spare parts to our overseas oilfield customers.



We welcome the establishment of win-win cooperation with partners all over the world, every customer is our God and helper. Warmly welcome you to visit China!
