2200hp Oilfield Mud Pump NB2200 HDD Mud Recycling System
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | NB2200 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Trip | 177.8 | Cylinder Diameter | 170 |
|---|---|---|---|
| Flow(L/min) | 800-2200 | Pressure（Mpa） | 5-20 |
| Input Power（KW） | 240 | Mass（kg） | 10000 |
| Highlight | Oilfield Mud Pump NB 2200,2200hp Oilfield Mud Pump,2200hp HDD Mud Recycling System |
||
Product Description
2200 hp/kw HDD Mud Pump HDD Mud Recycling System / Oilfield Mud Pump / Cementing Pump

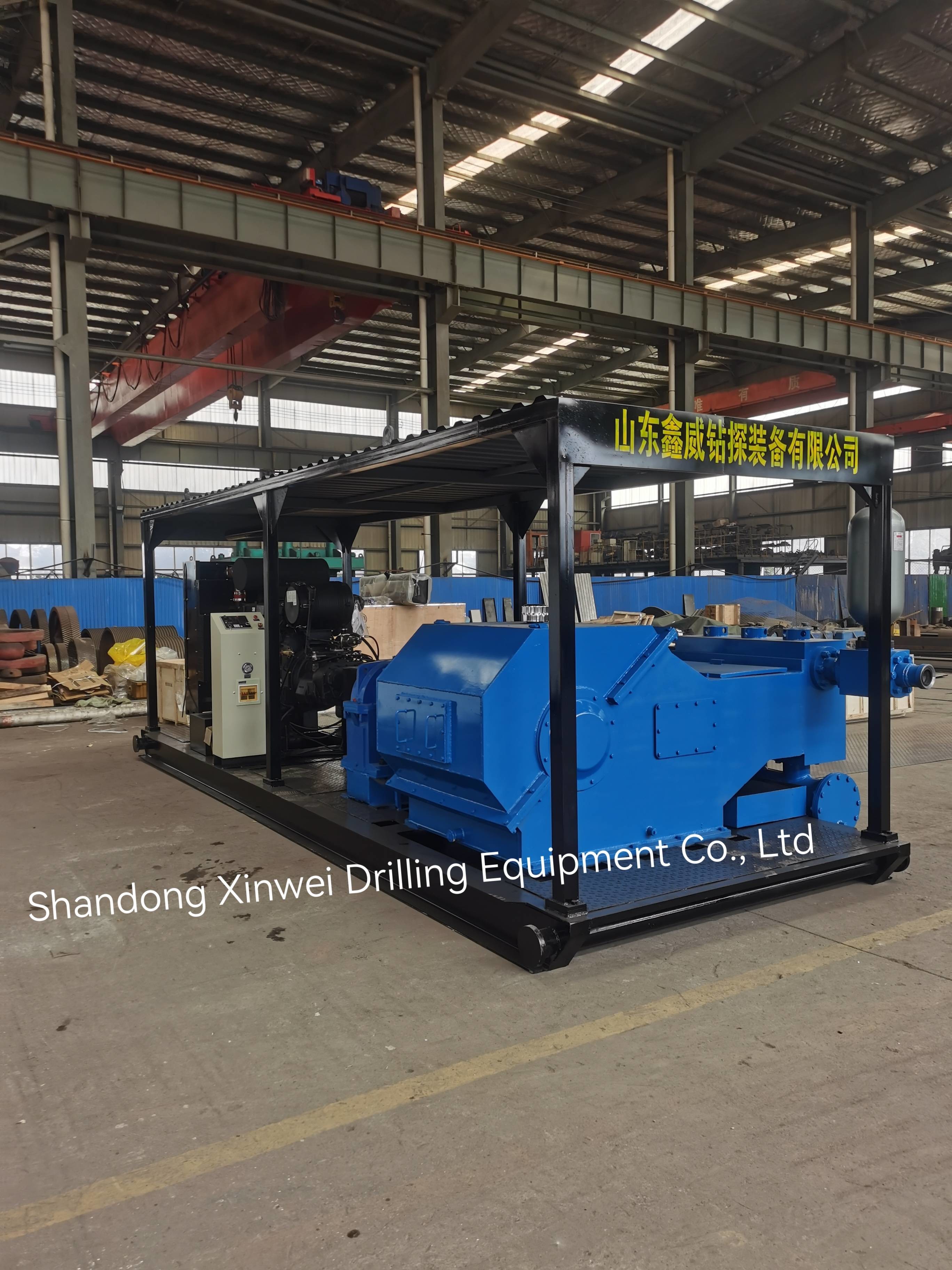

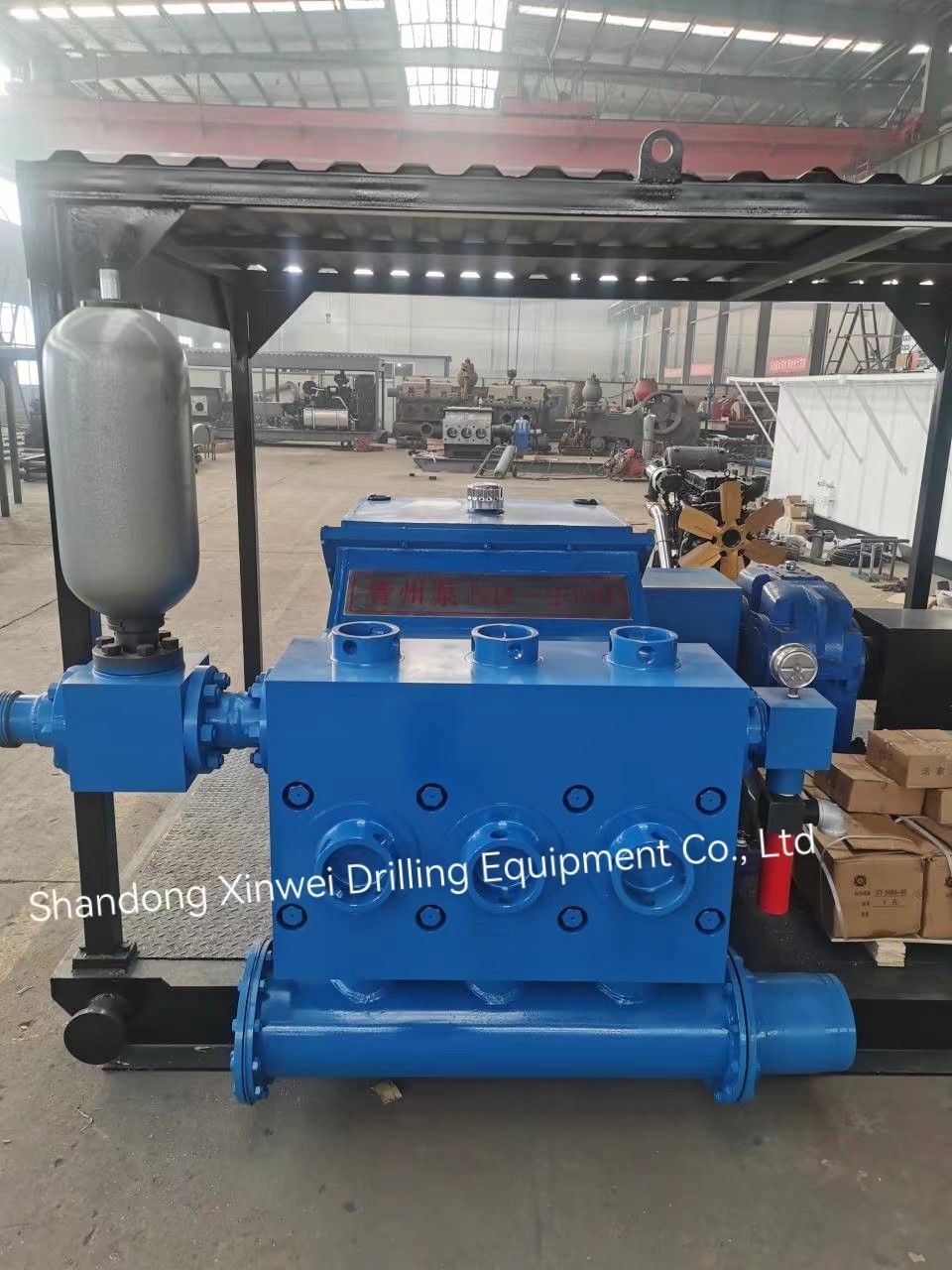

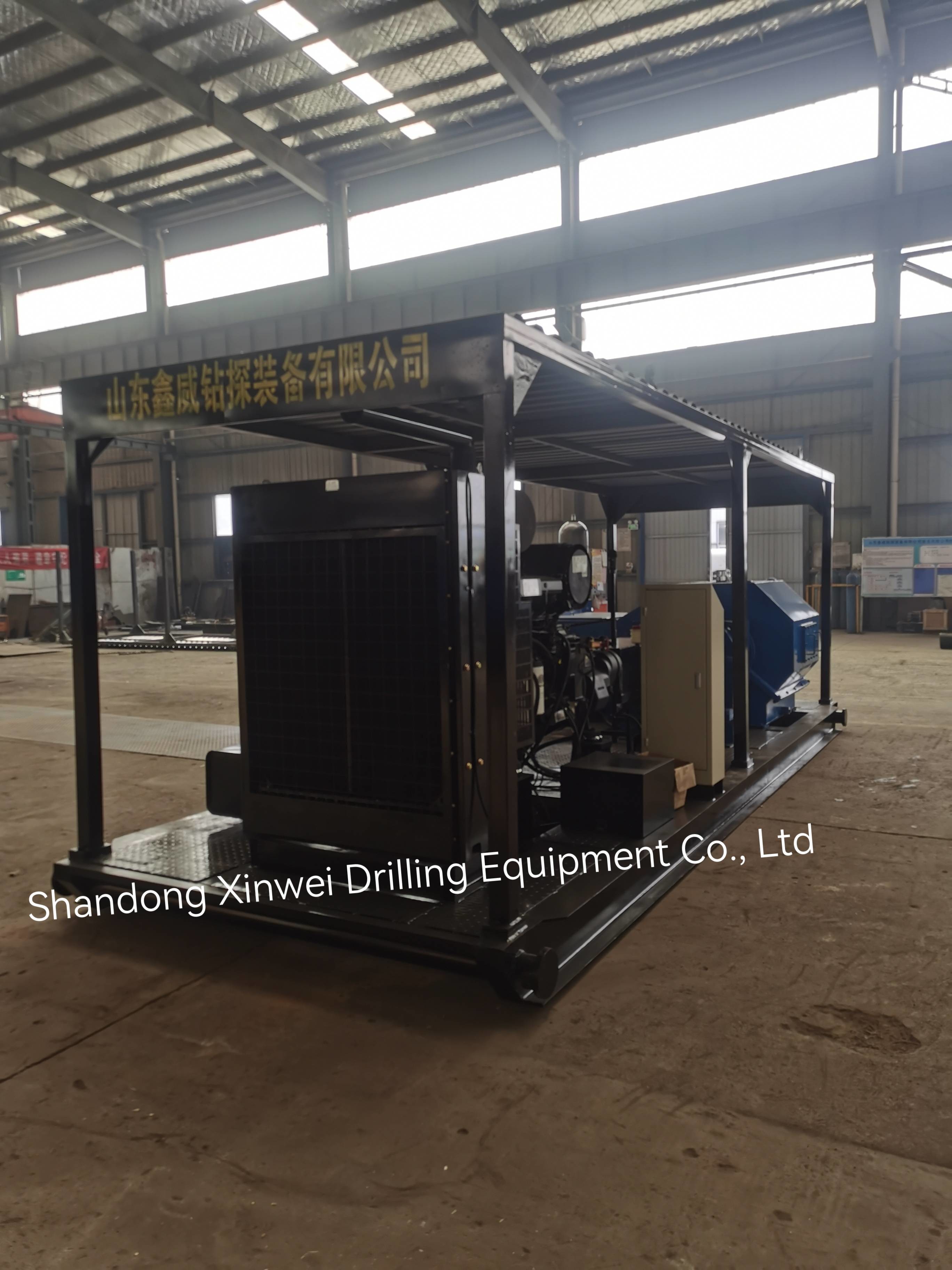

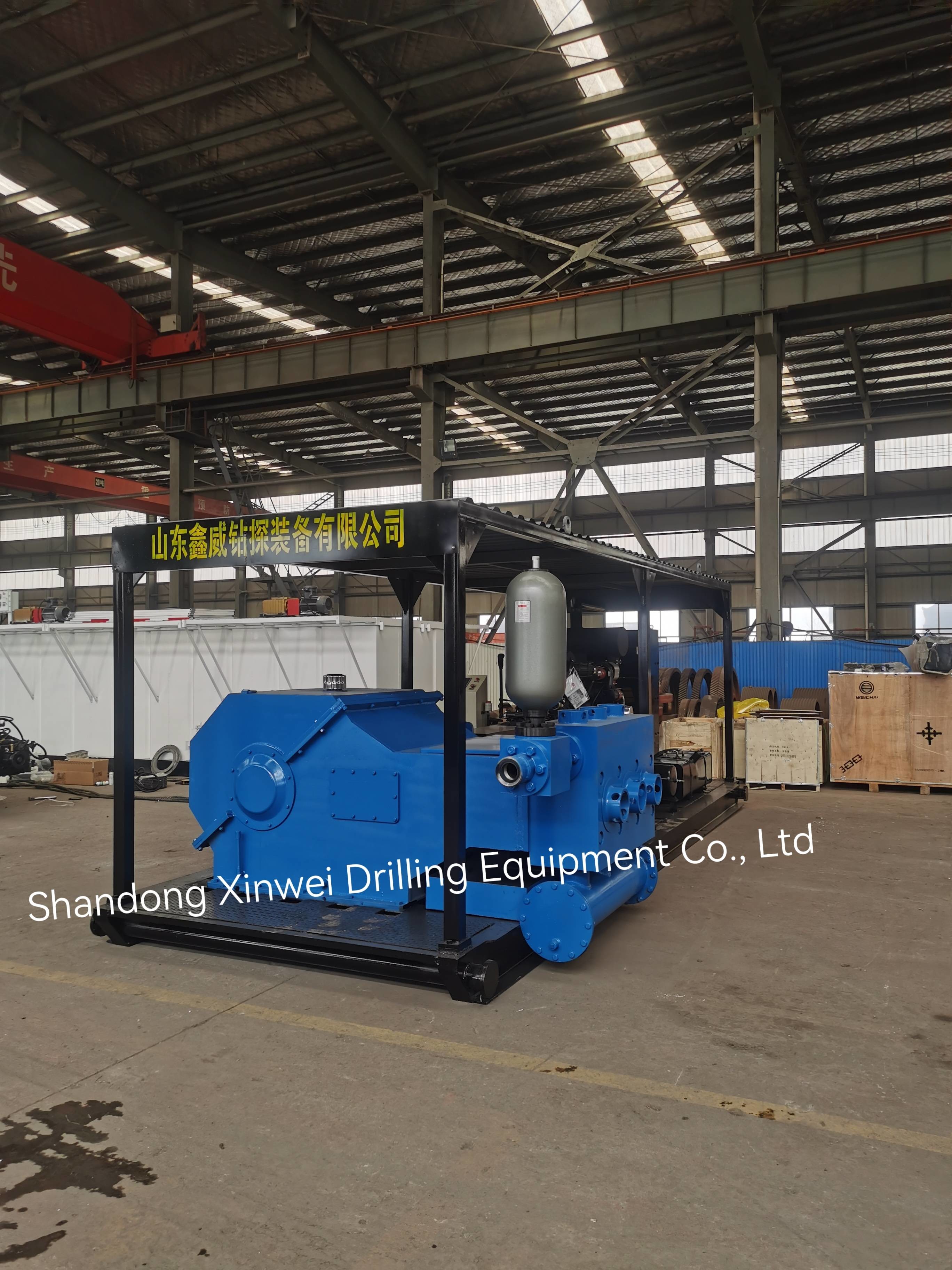

QZNB-2200 mud pump is a horizontal three-cylinder reciprocating single acting piston pump, driven by diesel engine, equipped with manual gearshift transmission and wireless remote control. It is mainly used for matching with more than 200 tons trenchless drill, and can also be used for other purposes such as grouting, mine drainage and long-distance water delivery. The pump has eight kinds of flow rate and eight kinds of pressure, the flow rate and pressure variation range is large, can be suitable for different aperture drilling and drag back.
Manufacturing, the casing is welded with high strength steel plate, the connecting rod crosshead is welded with rolling bearing, which improves the service life than the bearing bush type design. The cylinder liner is made of bimetallic structure, and the inner sleeve is made of high silicon and high chromium alloy. The hardness reaches HRC62° or above, which improves the service life of parts and reduces the loss of parts and so on.
Technical Specification
| Shandong Xinwei Drilling Equipment Co.,Ltd | |||||
|---|---|---|---|---|---|
| Qingzhou NB-2200 Mud Pump Technical Specification | |||||
| Power(kw) | 246 | Stroke Length(mm) | 200 | Reduction Ratio | 3.05 |
| Liner Size(mm) | 150 | Flow Rate(L/R) | 12.1 | Rated Stroke(spm) | 200 |
| Stroke(spm) | 80 | 100 | 120 | 140 | 165 |
| Flow Rate(L/min) | 968 | 1210 | 1440 | 1694 | 2000 |
| Pressure(MPa) | 14 | 12 | 9.85 | 7.4 | 6 |
| Dimension(mm) | LxWxH:5700x2000x2100 | Weight(kgs) | 8300 | ||
