500hpOil Rig Mud Pump F-500
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-500 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rating | 373 | Stroke Rating | 165 |
|---|---|---|---|
| Stroke Length | 7.5”/190.5 | Gear Ratio | 4.286 |
| Inlet Dia | 8”/203 | Outlet Dia | 4“Flange 5000psi |
Product Description

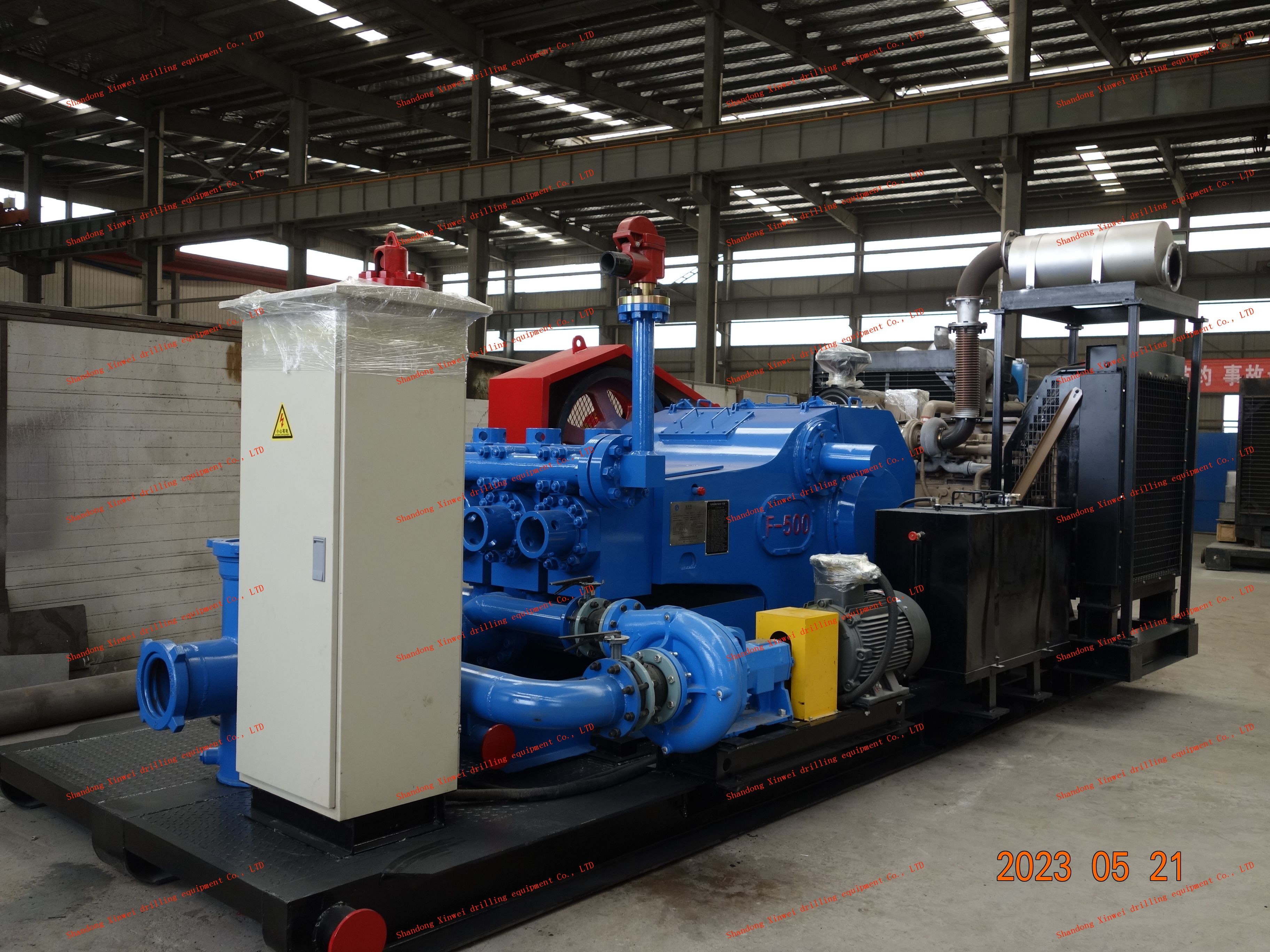

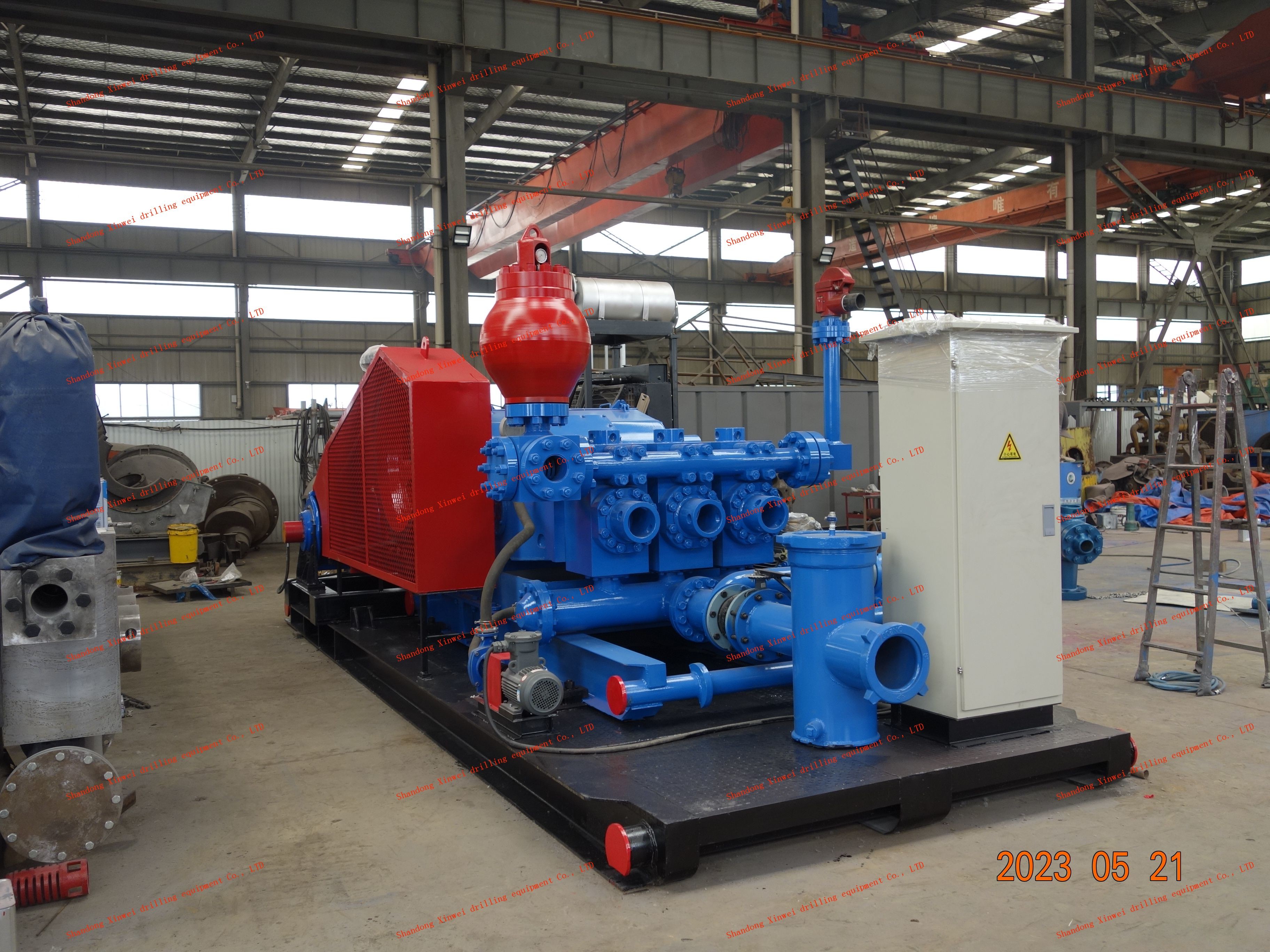

500hpOil Rig Mud Pump F-500
- F-500 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | |||||||||
|
Rated Input Power (KW/HP) |
373/500 | Gear Ratio | 4.286:1 | |||||||||
| Rated Stroke (SPM) | 165 | Lubrication | Forced & Splashing | |||||||||
| Stroke Length (mm/in) | 190.5/7.5〃 | Valve Cavity | API-5# | |||||||||
| Inlet Connection | 8〃(203mm) | Outlet Connection | 4〃Flange 5000psi | |||||||||
| Weight(Kg/Pound) | 9770/21540 |
Overall Dimension (L×W×H) |
3658×2709×2231mm 144〃×106.65〃×87.8〃 |
|||||||||
| SPM | Rated Power | Liner Dia. (in) and Pressure Rating (Mpa / psi) | ||||||||||
| 6-3/4 | 6-1/2 | 6 | 5-1/2 | 5 | 4-1/2 | 4 | ||||||
|
9.25 1340 |
9.97 1445 |
11.7 1695 |
13.93 2020 |
16.85 2445 |
20.81 3020 |
26.33 3820 |
||||||
| HP | KW | |||||||||||
| Displacement (L/S)/(gpm) | ||||||||||||
| 165 | 500 | 373 |
36.28 575 |
33.65 533 |
28.67 454 |
24.09 382 |
19.91 316 |
16.13 256 |
12.74 202 |
|||
| 150 | 455 | 339 |
32.99 523 |
30.59 485 |
26.06 413 |
21.90 347 |
18.10 287 |
14.66 232 |
11.58 184 |
|||
| 140 | 424 | 316 |
30.79 488 |
28.55 453 |
24.32 385 |
20.44 324 |
16.89 268 |
13.68 217 |
10.81 171 |
|||
| 130 | 394 | 294 |
28.59 453 |
26.51 420 |
22.59 358 |
18.98 301 |
15.69 249 |
12.71 201 |
10.04 159 |
|||
| 120 | 364 | 271 |
26.39 418 |
24.47 388 |
20.85 330 |
17.52 278 |
14.48 230 |
11.73 186 |
9.27 147 |
|||
| 110 | 333 | 249 |
24.19 383 |
22.43 356 |
19.11 303 |
16.06 255 |
13.27 210 |
10.75 170 |
8.49 135 |
|||
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||||||
