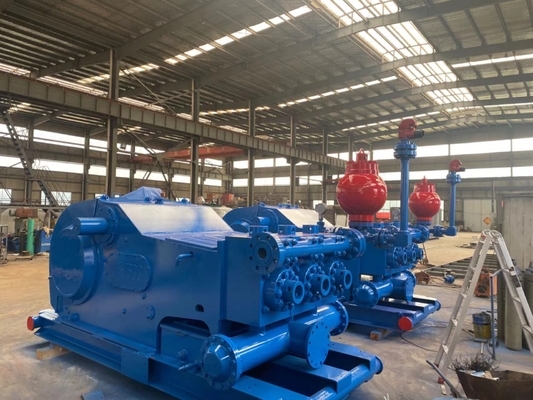

1600HP 5-1/8 Inlet 12/305 Stroke Triplex Mud Pump with 5000psi Flange Pressure
| Place of Origin | China |
|---|---|
| Brand Name | xinwei |
| Certification | IQ9000 |
| Model Number | F-1600 |
| Minimum Order Quantity | 1 |
| Price | $10,0000~$12,0000 |
| Packaging Details | Naked packing |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max.liner（in/mm） | 7″180 | Country Of Origin | China |
|---|---|---|---|
| Power RatingHP(kw） | 1600（1193） | Stroke Length (in/mm) | 12″/305 |
| Gear Ratio | 4.206 | Outlet Dia.（in） | 5-1/8″flange 5000psi |
| Valve | API 7# | Approx.weight (kg) | 24791 |
Product Description
Product Description:
With an overall dimension of 4615 x 3276 x 2688 mm, this drilling mud pump is the perfect fit for any drilling rig, providing the power and reliability you need to get the job done. With a power rating of 1600 HP/1193 kW, it has the power to tackle even the toughest drilling applications, making it the ideal choice for any drilling operation.
Whether you're drilling for oil, gas, or other natural resources, our Triplex Mud Pump is the perfect choice for your drilling needs. So why wait? Order yours today and experience the power and performance of our top-quality drilling mud pump!
Features:
- Product Name: Triplex Mud Pump
- Country of Origin: China
- Valve: API 7#
- Inlet dia (in/mm): 12"/305
- Power rating HP (kw): 1600 (1193)
- Stroke length (in/mm): 12"/305
This Triplex Mud Pump is perfect for use as a drilling rig mud pump parts or drilling mud pump .
Technical Parameters:
| Product Name: | Drilling Mud Pump |
| Outlet dia.(in): | 5-1/8" flange 5000psi |
| Valve: | API 7# |
| Stroke rating SPM: | 120 |
| Stroke length (in/mm): | 12"/305 |
| Max.liner(in/mm): | 7" 180 |
| Power ratingHP(kw): | 1600(1193) |
| Country of Origin: | China |
| Gear ratio: | 4.206 |
| Approx.weight(kg): | 24791 |
| Overall dimension L*W*H(mm): | 4615*3276*2688 |
Applications:
With its powerful 1600 horsepower (1193 kW) motor, the F-1600 is capable of delivering high-pressure mud flows of up to 5000psi. This makes it an ideal choice for use in drilling mud pump applications where high-pressure mud flows are essential for effective drilling.
The F-1600 is built to last and is certified to meet IQ9000 standards. It has a minimum order quantity of 1 and is priced between $10,0000-$12,0000, making it an affordable option for drilling contractors and other customers who need reliable drilling mud pumps at a reasonable price.
The F-1600 is also designed with ease of use in mind. Its gear ratio of 4.206 and stroke rating of 120 SPM make it easy to operate, while its outlet diameter of 5-1/8" flange ensures that it can be easily connected to a wide range of drilling rig equipment.
When it comes to packaging and delivery, the F-1600 is shipped in naked packing and has a delivery time of 60 days. Payment terms are T/T, and the supply ability is 100 units per year. And, as a product of China, customers can be assured of its quality and durability.
In summary, the F-1600 triplex mud pump from Xinwei is an excellent choice for drilling contractors and others who need reliable, high-pressure drilling mud pumps. With its powerful motor, easy operation, and affordable price, the F-1600 is the perfect choice for a wide range of drilling mud pump applications.
