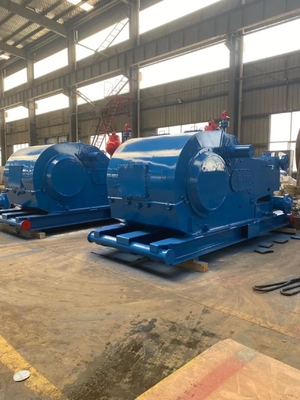

Custom Drilling Rig Mud Pump 1600HP Power Rating With 7 Max Liner Size
| Place of Origin | China |
|---|---|
| Brand Name | xinwei |
| Certification | IQ9000 |
| Model Number | F-1600 |
| Minimum Order Quantity | 1 |
| Price | $10,0000~$12,0000 |
| Packaging Details | Naked packing |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power RatingHP(kw） | 1600（1193） | Max.liner（in/mm） | 7″180 |
|---|---|---|---|
| Stroke Rating SPM | 120 | Stroke Length (in/mm) | 12″/305 |
| Inlet Dia（in/mm） | 12″/305 | Valve | API 7# |
| Overall Dimension L*W*H(mm) | 4615*3276*2688 | Outlet Dia.（in） | 5-1/8″flange 5000psi |
Product Description
Product Description:
With a gear ratio of 4.206, our Triplex Mud Pump delivers superior power and efficiency, making it the ideal choice for demanding drilling operations. The pump is capable of handling a maximum liner size of 7"180, ensuring that it can handle a wide range of drilling applications with ease.
Our Drilling Mud Pump is powered by a 1600 (1193) HP (kw) engine, providing the power you need to get the job done quickly and efficiently.
Our Triplex Mud Pump is proudly made in China, where it is manufactured to the highest quality standards. You can rest assured that our pump is built to last, delivering reliable performance for years to come.
The valve used in our Drilling Mud Pump is API 7#, which is known for its durability and reliability. This valve ensures that the pump operates smoothly and efficiently, even under the most demanding conditions.
So if you're looking for a high-performance, durable Drilling Mud Pump that can handle even the toughest drilling environments, look no further than our Triplex Mud Pump.
Features:
Triplex Mud Pump Features:
- Product Name: Triplex Mud Pump
- Max.liner (in/mm): 7" / 180
- Gear ratio: 4.206
- Valve: API 7#
- Approx. weight (kg): 24791
- Stroke length (in/mm): 12" / 305
Our Triplex Mud Pump is an essential Drilling Mud Pump for any Drilling Rig. It is made with high-quality parts and is designed to withstand the harsh conditions of drilling. We also offer a variety of Drilling Rig Mud Pump Parts to ensure that your pump stays in top condition.
Technical Parameters:
| Drilling Rig Mud Pump Parts | Triplex Mud Pump |
| Inlet dia（in/mm） | 12″/305 |
| Max.liner（in/mm） | 7″180 |
| Gear ratio | 4.206 |
| Country of Origin | China |
| Valve | API 7# |
| Power ratingHP(kw） | 1600（1193） |
| Outlet dia.（in） | 5-1/8″flange 5000psi |
| Approx.weight (kg) | 24791 |
| Overall dimension L*W*H(mm) | 4615*3276*2688 |
| Stroke rating SPM | 120 |
| Drilling Rig Mud Pump | Drilling Rig Mud Pump |
Applications:
The F-1600 triplex mud pump is suitable for various drilling mud pumps. The product's overall dimension L*W*H(mm) is 4615*3276*2688, and its stroke length (in/mm) is 12″/305. Additionally, the F-1600 has an inlet diameter of 12″/305 and a max. liner of 7″/180. The F-1600 is a highly reliable product that is widely used in drilling operations worldwide.
One of the primary applications of the F-1600 triplex mud pump is in oil and gas drilling operations. The pump's high pressure and high flow rate make it ideal for drilling in harsh environments. The F-1600 is designed to withstand high temperatures and pressures, making it a perfect fit for drilling operations that require high-performance mud pumps.
The F-1600 triplex mud pump is also suitable for use in geothermal drilling. Geothermal drilling requires drilling mud pumps that can withstand high temperatures and pressures. The F-1600 is designed to handle these conditions, making it one of the best drilling rig mud pump parts for geothermal drilling.
In summary, the F-1600 triplex mud pump from Xinwei is an excellent product that is perfect for various drilling mud pumps. With a supply ability of 100, this product is readily available for purchase. The F-1600 is delivered via naked packing and has a delivery time of 60 days. Payment terms for this product are T/T.
