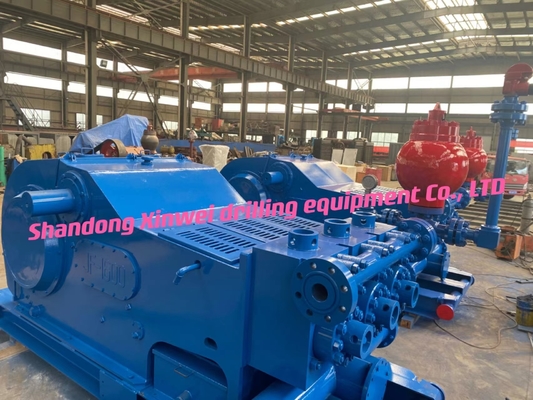

API 7# Valve Onshore and Offshore Drilling Mud Pump With 5-1/8 5000psi Flange 120 SPM Stroke
| Place of Origin | China |
|---|---|
| Brand Name | xinwei |
| Certification | IQ9000 |
| Model Number | F-1600 |
| Minimum Order Quantity | 1 |
| Price | $10,0000~$12,0000 |
| Packaging Details | Naked packing |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Outlet Dia.（in） | 5-1/8″flange 5000psi | Overall Dimension L*W*H(mm) | 4615*3276*2688 |
|---|---|---|---|
| Stroke Rating SPM | 120 | Approx.weight (kg) | 24791 |
| Stroke Length (in/mm) | 12″/305 | Inlet Dia（in/mm） | 12″/305 |
| Valve | API 7# | Power RatingHP(kw） | 1600（1193） |
Product Description
Product Description:
Features:
- Product Name: Triplex Mud Pump
- Overall dimension L*W*H(mm): 4615*3276*2688
- Inlet dia（in/mm）: 12″/305
- Outlet dia.（in）: 5-1/8″flange 5000psi
- Country of Origin: China
- Max.liner（in/mm）: 7″180
Keywords: Drilling Mud Pump, Drilling Rig Mud Pump, Drilling Rig Mud Pump Parts
Technical Parameters:
| Drilling Mud Pump | Technical Parameters |
| Approx.weight (kg) | 24791 |
| Outlet dia.（in） | 5-1/8″flange 5000psi |
| Stroke length (in/mm) | 12″/305 |
| Gear ratio | 4.206 |
| Stroke rating SPM | 120 |
| Power ratingHP(kw） | 1600（1193） |
| Country of Origin | China |
| Overall dimension L*W*H(mm) | 4615*3276*2688 |
| Inlet dia（in/mm） | 12″/305 |
| Valve | API 7# |
Applications:
The pump is manufactured in China and comes with IQ9000 certification, ensuring that it meets international quality standards. With a minimum order quantity of 1, the xinwei F-1600 is an accessible option for drilling companies of all sizes.
The price of the xinwei F-1600 ranges from $10,0000 to $12,0000, and it comes with naked packing. Delivery time is estimated at 60 days, and payment terms are T/T. The pump has a supply ability of 100, making it a readily available option for those in the drilling industry.
The xinwei F-1600 has an approximate weight of 24791kg and a power rating of 1600HP (1193 kW). Its stroke rating SPM is 120, making it capable of handling high-pressure drilling tasks. The max liner size is 7" (180mm), and the inlet diameter is 12" (305mm).
The xinwei F-1600 is designed for use in a variety of drilling mud pump applications. It is suitable for use in oil and gas drilling, geothermal drilling, and water well drilling. Its robust design and high-pressure capabilities make it an ideal choice for drilling companies looking for a reliable and efficient mud pump.
Whether you are working on a small or large scale drilling project, the xinwei F-1600 Drilling Mud Pump is a reliable choice. With its high-pressure capabilities and durable design, it can handle a variety of drilling tasks with ease.
