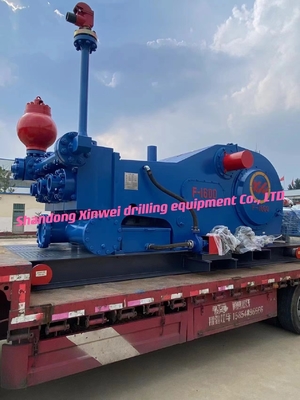

Powerful Triplex Mud Pump With Stroke Of 12\u2033/305mm And Power Rating 1600 HP
| Place of Origin | China |
|---|---|
| Brand Name | xinwei |
| Certification | IQ9000 |
| Model Number | F-1600 |
| Minimum Order Quantity | 1 |
| Price | $10,0000~$12,0000 |
| Packaging Details | Naked packing |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max.liner（in/mm） | 7″180 | Gear Ratio | 4.206 |
|---|---|---|---|
| Power RatingHP(kw） | 1600（1193） | Approx.weight (kg) | 24791 |
| Country Of Origin | China | Stroke Length (in/mm) | 12″/305 |
| Overall Dimension L*W*H(mm) | 4615*3276*2688 | Stroke Rating SPM | 120 |
Product Description
Product Description:
With a power rating of 1600 HP (1193 kW), the Triplex Mud Pump is capable of delivering the power you need to get the job done quickly and efficiently. Its 12" (305 mm) inlet diameter ensures a steady flow of mud, while its 5-1/8" flange outlet diameter can handle up to 5000 psi of pressure.
Made in China, this drilling mud pump is built to last. It features a rugged construction that can withstand the toughest drilling conditions, ensuring that you get the most out of your investment. With an approximate weight of 24791 kg, this pump is easy to maneuver and transport, making it a great choice for drilling rigs of all sizes.
Whether you're drilling for oil, gas, or other resources, the Triplex Mud Pump is the perfect tool for the job. Its reliable performance, rugged construction, and impressive power make it one of the best drilling rig mud pumps on the market today.
Features:
Product Name: Triplex Mud Pump
- Valve: API 7#
- Stroke rating SPM: 120
- Approx. weight (kg): 24791
- Outlet dia. (in): 5-1/8" flange 5000psi
- Stroke length (in/mm): 12"/305
Drilling Rig Mud Pump, Drilling Mud Pumps
Technical Parameters:
| Product | Triplex Mud Pump |
| Stroke rating SPM | 120 |
| Outlet dia.（in） | 5-1/8″flange 5000psi |
| Inlet dia（in/mm） | 12″/305 |
| Power ratingHP(kw） | 1600（1193） |
| Approx.weight (kg) | 24791 |
| Country of Origin | China |
| Stroke length (in/mm) | 12″/305 |
| Valve | API 7# |
| Overall dimension L*W*H(mm) | 4615*3276*2688 |
| Max.liner（in/mm） | 7″180 |
These technical parameters are for the Triplex Mud Pump, which is a type of drilling mud pump commonly used in drilling rigs. This pump is an essential part of the drilling rig mud pump parts and is used to pump drilling fluids or mud into the wellbore during drilling operations.
Applications:
The mud pump is ideal for various drilling applications and scenarios. Its outlet diameter of 5-1/8" flange and 5000psi makes it suitable for drilling mud pump systems. The gear ratio of 4.206 and valve of API 7# ensure efficient and reliable operation. The approximate weight of the product is 24791kg with a stroke rating of SPM 120.
Xinwei F-1600 is suitable for use in onshore and offshore drilling rigs, ensuring that mud is circulated effectively. The mud pump is also ideal for use in geothermal drilling and mining operations. It can handle different types of drilling mud, including oil-based, water-based, and synthetic-based fluids.
The product is delivered within 60 days and packaged in naked packing. Payment is made via T/T, and the supply ability of the product is 100. With its superior quality and performance, Xinwei F-1600 is the perfect drilling mud pump for your drilling operations.
