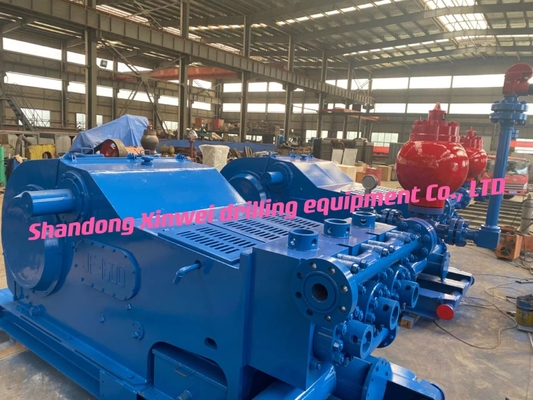

1600HP API 7# Triplex Mud Pump for Onshore Drilling with Max. Liner 7×180

Product Description:

With a max liner of 7" (180mm), this mud pump is capable of handling a wide range of drilling applications, making it an ideal choice for drilling contractors and operators. Its power rating of 1600 HP (1193 kW) makes it one of the most powerful mud pumps in its class, ensuring that it can handle even the toughest drilling projects with ease.

The Triplex Mud Pump is equipped with a 12" (305mm) inlet diameter, which allows it to handle high volumes of drilling mud efficiently. Its stroke rating of 120 SPM ensures that it delivers a consistent and reliable flow of drilling mud to the drilling rig, making it an essential component of any drilling operation.

Whether you are drilling for oil, gas, or minerals, the Triplex Mud Pump is an essential tool that can help you get the job done quickly and efficiently. Its rugged construction and powerful performance make it an ideal choice for drilling contractors and operators who demand the best.

So if you are looking for a high-quality drilling mud pump that can handle even the toughest drilling conditions, look no further than the Triplex Mud Pump. With its advanced design and superior performance, it is the perfect choice for any drilling rig mud pump application.

Features:

• Product Name: Triplex Mud Pump
• Outlet dia.（in）: 5-1/8″flange 5000psi
• Approx.weight (kg): 24791
• Power ratingHP(kw）: 1600（1193）
• Overall dimension L*W*H(mm): 4615*3276*2688
• Stroke length (in/mm): 12″/305

Drilling Rig Mud Pump Parts, Drilling Mud Pump, Drilling Mud Pump

Technical Parameters:

This Drilling Rig Mud Pump product has several technical parameters, including max. liner size of 7" and a power rating of 1600 HP (1193 kW). It is made in China and has an outlet diameter of 5-1/8" flange with a pressure rating of 5000 psi. The stroke length is 12" and it has a stroke rating of 120 SPM. In addition, this product weighs approximately 24791 kg and has an inlet diameter of 12".

For those looking for Drilling Rig Mud Pump Parts or Drilling Mud Pumps, this product may be a suitable option.

Applications:

Xinwei F-1600 is a high-quality drilling mud pump manufactured in China, designed to meet the needs of oil and gas drilling industries. This product has been certified by IQ9000 and is available for purchase with a minimum order quantity of one unit. The price of the product ranges from $10,0000 to $12,0000 and can be delivered within 60 days after payment has been made through T/T payment terms. The product is supplied with a stroke length of 12"/305mm, and the overall dimensions measure 4615*3276*2688mm.

The Xinwei F-1600 is equipped with an API 7# valve and an inlet diameter of 12"/305mm. The gear ratio of 4.206 enhances the efficiency and performance of the product. The product is designed to handle high-pressure drilling mud with ease, making it an ideal choice for use in oil and gas drilling industries.

The drilling mud pump is widely used in oil and gas drilling operations. It is used to circulate drilling fluids, known as mud, through the drill string and back up the annulus. The mud pump is an essential component of the drilling system, and it is used to maintain the pressure required for drilling. The Xinwei F-1600 is a perfect fit for these applications due to its outstanding pressure handling capacity and high-performance features.

The product is suitable for both onshore and offshore drilling operations. It can be used for various drilling applications, including oil and gas exploration, geothermal drilling, coal bed methane drilling, and many more. The product is designed to withstand harsh drilling environments and can operate in extreme temperatures and pressure conditions.

The Xinwei F-1600 drilling mud pump is a reliable and durable product that is easy to operate and maintain. The product is supplied with naked packing, making it easy to transport and install. With a supply ability of 100 units, the product is readily available to meet the needs of the drilling industry.
