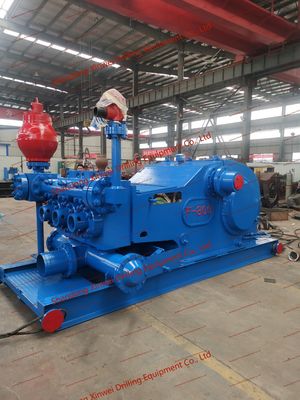

Number Of Pistons 3 Triple Mud Pump featuring High Chrome Fluid End Material designed for mud circulation in drilling rigs

Product Description:

The Triplex Mud Pump is an essential piece of equipment widely used in drilling operations, designed to deliver high performance and reliability in demanding environments. This pump is also commonly referred to as the Triplex Plunger Pump, Three-Cylinder Mud Pump, or Three-Piston Mud Pump, highlighting its robust three-cylinder design that ensures consistent and efficient mud circulation. Its advanced engineering and durable construction make it a preferred choice for both onshore and offshore drilling projects.

One of the standout features of this Triplex Mud Pump is its outlet diameter of 5 inches, which allows for a significant flow rate, ensuring that drilling fluids can be circulated effectively and efficiently. The pump’s discharge pipe diameter measures φ25mm, allowing for smooth and steady discharge of the drilling mud, which is critical in maintaining optimal drilling conditions and preventing equipment damage.

The pump is equipped with API 7# valves, which are known for their high resistance to wear and corrosion. These valves play a crucial role in maintaining the pressure and flow within the pump system, ensuring that the mud pump operates at peak efficiency. The use of API 7# valves also guarantees compatibility with industry standards, making maintenance and part replacement more straightforward and reliable.

Another key specification of this pump is its maximum liner size, which is 7 inches. This large liner size enables the pump to handle high volumes of drilling fluid, making it suitable for heavy-duty drilling tasks. The liners are designed to withstand the abrasive nature of drilling mud, thereby extending the pump’s service life and reducing downtime caused by maintenance.

The cylinder diameter of 170 mm is a critical dimension that influences the pump's displacement and overall capacity. A larger cylinder diameter allows the pump to deliver higher volumes of mud with each stroke, enhancing the efficiency of the drilling process. This dimension, combined with the triplex design, ensures a balanced and smooth operation that minimizes vibration and mechanical stress on the equipment.

The Triplex Plunger Pump’s three-cylinder configuration is instrumental in providing a continuous and pulsation-free flow of drilling mud. This design reduces the risk of cavitation and pressure fluctuations, which are common issues in single or duplex pumps. The three pistons work in a coordinated manner, delivering a steady stream of fluid that helps maintain the stability of the wellbore and improves the overall safety of drilling operations.

Durability and ease of maintenance are also key advantages of this Three-Cylinder Mud Pump. The components are constructed from high-quality materials that resist corrosion, abrasion, and thermal stress. The modular design simplifies disassembly and reassembly, allowing for quick access to internal parts such as liners, pistons, and valves. This reduces downtime during maintenance and ensures that the pump remains operational for extended periods.

In summary, the Triplex Mud Pump is a high-performance, reliable, and efficient solution for fluid circulation in drilling applications. Its 5-inch outlet diameter, API 7# valves, 7-inch maximum liner size, 25 mm discharge pipe diameter, and 170 mm cylinder diameter collectively contribute to its superior performance. Known as a Triplex Plunger Pump, Three-Cylinder Mud Pump, or Three-Piston Mud Pump, it offers excellent durability, ease of maintenance, and consistent operation, making it an indispensable tool for modern drilling operations.

Features:

• Product Name: Triplex Mud Pump
• Stroke Length: 9“ / 228.6 mm
• Discharge Pipe Diameter: φ25 mm
• Displacement: 32-150 L/min
• Maximum Pressure: 3500 Psi
• Maximum Liner Size: 7 Inches
• Also known as Triple Mud Pump, Three-Crank Mud Pump, and Three-Plunger Mud Pump

Technical Parameters:

Applications:

The Xinwei Triplex Mud Pump, model F-1300, is a highly efficient and reliable piece of equipment designed for demanding drilling operations. As a Three-Cylinder Mud Pump, it features three pistons working in unison to deliver consistent and powerful performance. This Triplex Piston Pump is certified with IQS9000, ensuring top-notch quality and adherence to international standards. With a stroke length of 9 inches (228.6 mm) and a power rating of 955, it provides robust pumping capacity suited for various industrial applications.

The Triple-Plex Mud Pump is ideal for use in oil and gas drilling, mining, and construction projects where the circulation of drilling fluids is critical. Its three-piston design ensures smooth and continuous flow, minimizing pulsations and enhancing operational stability. The pump’s discharge pipe diameter of φ25mm and outlet diameter of 5 inches enable it to handle large volumes of fluid efficiently, making it perfect for high-pressure mud circulation systems.

This pump is particularly suitable for scenarios requiring high reliability and durability under harsh working conditions. It can be deployed in remote drilling sites, offshore platforms, and large-scale mining operations where dependable mud pumping is essential to maintain drilling speed and safety. The Xinwei Triplex Mud Pump’s ability to operate continuously with minimal maintenance reduces downtime, thus increasing overall productivity.

With a supply ability of 100 units and a minimum order quantity of just 1, this pump is accessible for various project scales. The pricing ranges from $100,000 to $120,000, reflecting its advanced engineering and superior performance. Customers benefit from naked packing for easy inspection and handling, with a delivery time of 60 days and flexible payment terms via T/T.

In summary, the Xinwei F-1300 Three-Cylinder Mud Pump is an indispensable tool for heavy-duty drilling operations. Its triple-piston configuration, high power rating, and reliable construction make it the preferred choice for professionals seeking efficient and consistent mud pumping solutions in challenging environments.
