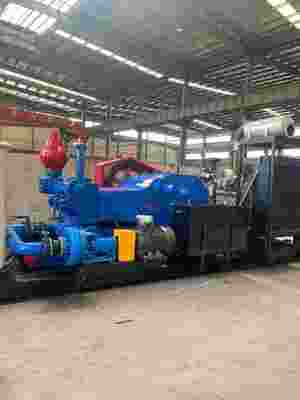

F-500 Triplex Mud pump
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | API |
| Model Number | F-500 Mud Pump |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Categories | F Series Drilling Mud Pump | Keywords | F-500 Mud Pump |
|---|---|---|---|
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear |
| Rated Input Power(KW/HP) | 373/500 | Gear Ratio | 4.286：1 |
| Rated Stroke (SPM) | 165 | Lubrication | Forced & Splashing |
| Stroke Length （mm/in） | 190.5/7.5〃 | Valve Cavity | API-5# |
| Inlet Connection | 8〃（203mm） | Outlet Connection | 4〃Flange 5000psi |
| Weight（Kg/Pound） | 9770/21540 | Overall Dimension（L×W×H） | 3658×2709×2231mm(144〃×106.65〃×87.8〃) |
| Highlight | F-500 Triplex Mud Pump,Triplex Mud Pump with warranty,F-500 Mud Pump heavy-duty |
||
Product Description

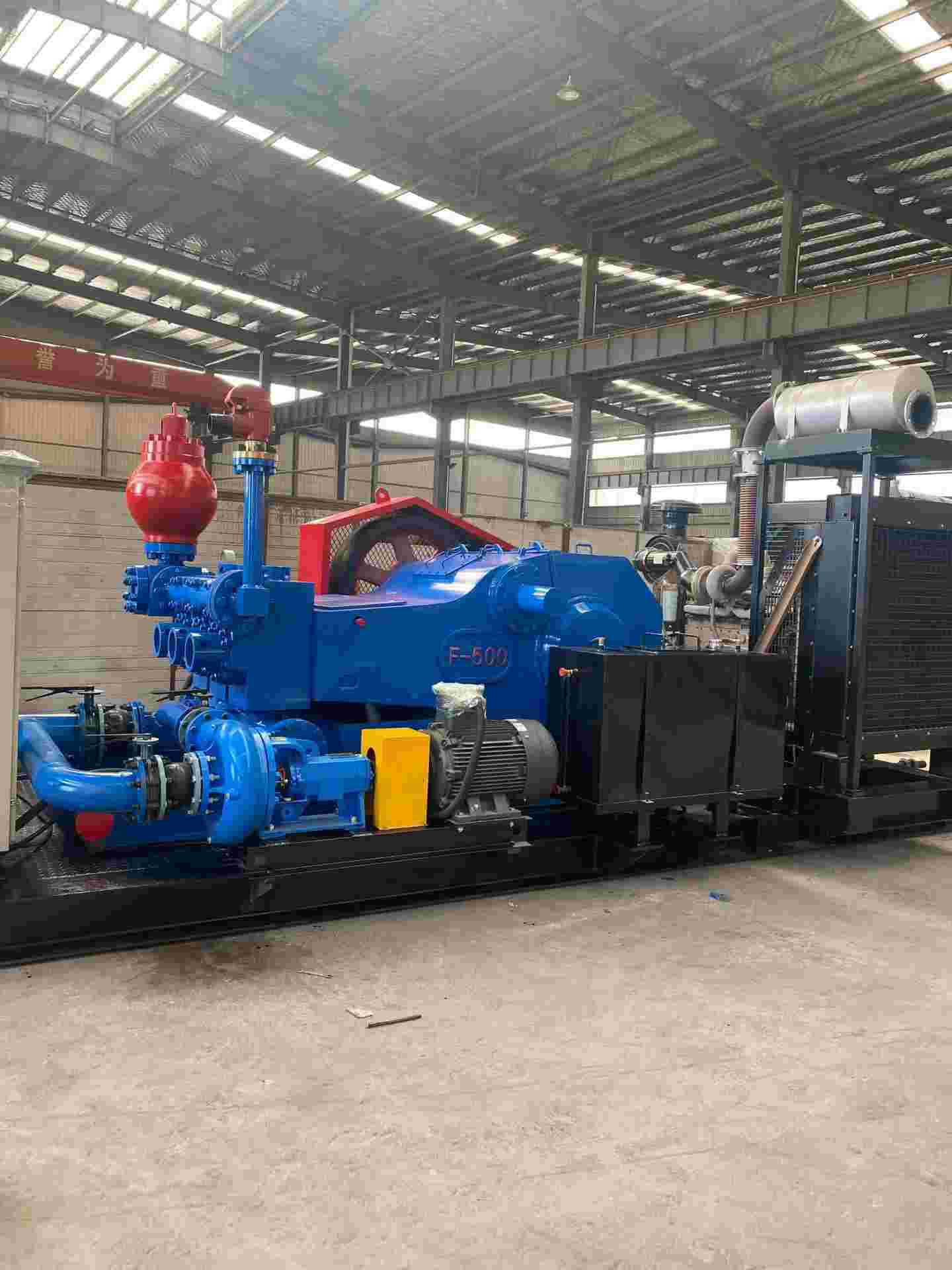

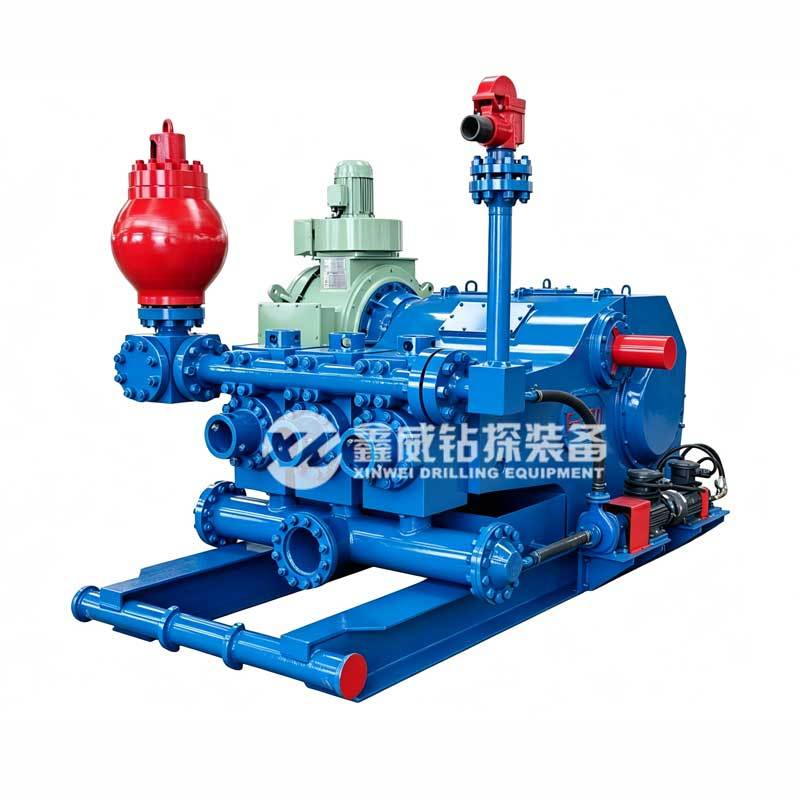

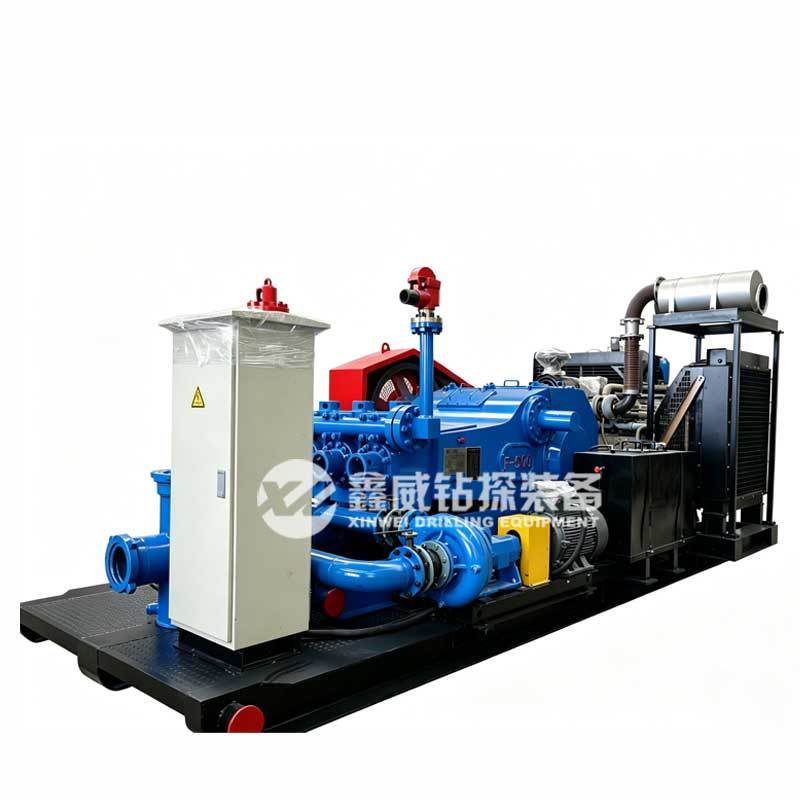

F-500 Triplex Mud Pump
The F-500 mud pump is a compact, high-performance triplex pump tailored for oilfield high-pressure and large-displacement drilling demands. It suits conventional drilling and workover operations with stable and efficient working performance.
Adopting an extended stroke design, the pump runs efficiently at lower stroke rates. This optimizes fluid supply performance and significantly reduces wear on liners, pistons and other fluid-end consumables, extending component service life.
The matched suction pulsation dampener stabilizes suction pressure fluctuations, ensures consistent mud intake, and maximizes the pump’s overall suction efficiency under various working conditions.
The power end adopts combined forced and splash lubrication. Full coverage lubrication for gears and bearings effectively reduces abrasion, stabilizes long-term operation and improves the overall durability of the power end system.
Technical Specifications
|
Type |
Horizontal Triplex Single Acting Piston Pump |
Gear Type |
Herringbone Gear |
|||||||||
|
Rated Input Power |
373/500 |
Gear Ratio |
4.286:1 |
|||||||||
|
Rated Stroke (SPM) |
165 |
Lubrication |
Forced & Splashing |
|||||||||
|
Stroke Length (mm/in) |
190.5/7.5〃 |
Valve Cavity |
API-5# |
|||||||||
|
Inlet Connection |
8〃(203mm) |
Outlet Connection |
4〃Flange 5000psi |
|||||||||
|
Weight(Kg/Pound) |
9770/21540 |
Overall Dimension |
3658×2709×2231mm |
|||||||||
|
SPM |
Rated Power |
Liner Dia. (in) and Pressure Rating (Mpa / psi) |
||||||||||
|
6-3/4 |
6-1/2 |
6 |
5-1/2 |
5 |
4-1/2 |
4 |
||||||
|
9.25 |
9.97 |
11.7 |
13.93 |
16.85 |
20.81 |
26.33 |
||||||
|
HP |
KW |
Displacement (L/S)/(gpm) |
||||||||||
|
36.28 |
33.65 |
28.67 |
24.09 |
19.91 |
16.13 |
12.74 |
||||||
|
165 |
500 |
373 |
36.28 |
33.65 |
28.67 |
24.09 |
19.91 |
16.13 |
12.74 |
|||
|
150 |
455 |
339 |
32.99 |
30.59 |
26.06 |
21.90 |
18.10 |
14.66 |
11.58 |
|||
|
140 |
424 |
316 |
30.79 |
28.55 |
24.32 |
20.44 |
16.89 |
13.68 |
10.81 |
|||
|
130 |
394 |
294 |
28.59 |
26.51 |
22.59 |
18.98 |
15.69 |
12.71 |
10.04 |
|||
|
120 |
364 |
271 |
26.39 |
24.47 |
20.85 |
17.52 |
14.48 |
11.73 |
9.27 |
|||
|
110 |
333 |
249 |
24.19 |
22.43 |
19.11 |
16.06 |
13.27 |
10.75 |
8.49 |
|||
|
Based on 100% volumetric efficiency and 90% mechanical efficiency |
||||||||||||
