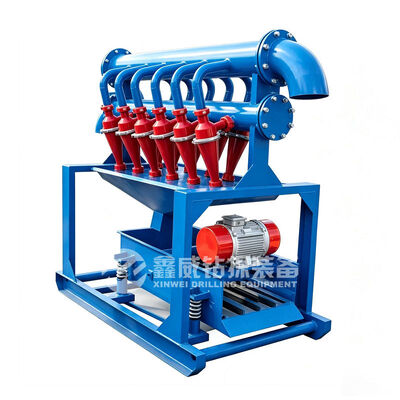

XWQJ Series Desilter for 20μm to 40μm Particle Removal with 160-240 m3/h Capacity in Drilling Fluid Processing
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Model Number | XWQJ |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Highlight | XWQJ Series Desilter,20μm to 40μm Particle Removal Desilter,160-240 m3/h Capacity Solids Control Equipment |
||
|---|---|---|---|
Product Description
Desilter
Usage & Application Scope
The XWQJ series desilter serves as critical third-stage solids control equipment for drilling fluid processing in oil and gas drilling systems. Primarily designed to further treat underflow discharged from drilling desanders, this upgraded desilter delivers significantly enhanced solids removal performance.
Compared with conventional desilter models, the XWQJ series improves overall solids handling capacity by 30% to 50%, effectively accelerating drilling progress while cutting down comprehensive operational costs.
Operating Principle
Working on the principle of centrifugal sedimentation, the XWQJ drilling fluid desilter generates powerful centrifugal acceleration to separate fine suspended solids from circulating mud. It is professionally configured to eliminate harmful fine particles ranging from 20μm to 40μm, ensuring purified drilling fluid quality and stabilizing overall solids control system operation throughout onshore and offshore drilling processes.
Available Configurations
Our available standard configurations cover three mainstream models: XWQJ100×12, XWQJ100×14, and XWQJ100×16. To accommodate diverse field working conditions and customer project demands, we support customized swirler quantity adjustment, including increasing or reducing the number of swirlers for tailored solids control solutions.
Technical Specifications
| Parameter | XWQJ100×12 | XWQJ100×14 | XWQJ100×16 |
|---|---|---|---|
| Cyclone cylinder diameter | 100 mm | 100 mm | 100 mm |
| Working pressure | 0.2～0.45 MPa | 0.2～0.45 MPa | 0.2～0.45 MPa |
| Capacity | 160-200 m³/h | 200-220 m³/h | 200-240 m³/h |
| Screen size | 1240×585 mm | 1240×585 mm | 1240×585 mm |
| Screen spec | 120-200 mesh | 120-200 mesh | 120-200 mesh |
| Inlet diameter | 6″ | 6″ | 6″ |
| Outlet diameter | 8″ | 8″ | 8″ |
| Motor power | 0.5 kW | 0.5 kW | 0.5 kW |
| Weight | 720 kg | 740 kg | 780 kg |
| Overall dimensions | 2546×1136×2085 | 2646×1136×2085 | 2866×2018×2085 |
