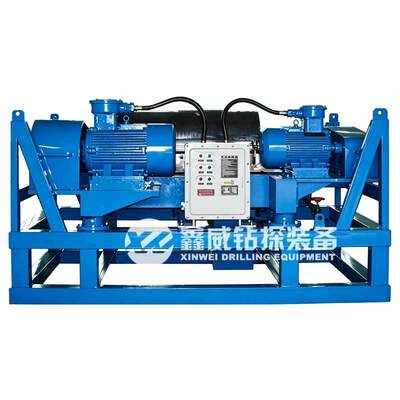

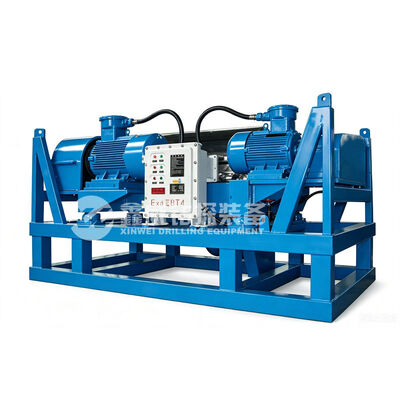

Industrial Decanter Centrifuge with High Processing Capacity and Explosion-Proof High-Speed Dual-Frequency for Continuous Solid-Liquid Separation
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Model Number | XWLW |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Highlight | High Processing Capacity Decanter Centrifuge,Explosion-Proof High-Speed Dual-Frequency Industrial Centrifuge,Continuous Solid-Liquid Separator |
||
|---|---|---|---|
Product Description
Centrifuge
Usage & Application Scope
Our industrial decanter centrifuge is engineered for exceptional adaptability, high processing capacity, continuous operation, user-friendly controls, easy installation, and compact design. It serves multiple industries including:
- Oil & Gas
- Environmental Protection
- Chemical Processing
- Food Manufacturing
- Papermaking
- Alcohol Brewing
- Starch Production
Operating on centrifugal sedimentation principles, this horizontal decanter centrifuge processes feed suspension within a high-speed rotating bowl. Material enters through an accelerator unit, where centrifugal force separates solids toward discharge outlets while liquid phases exit through dedicated ports, enabling continuous solid-liquid separation.
Structural Features
This decanter centrifuge achieves complete solid-liquid separation within its rotating bowl assembly. Key structural components include:
- Rotating bowl
- Scroll screw conveyor
- Differential gear unit
- Drive motors
The rotating assembly is horizontally supported by two main bearing housings. The scroll conveyor incorporates deep-groove ball bearings and tapered roller bearings. Power transmission occurs through a main motor connected via fluid coupling and belt pulley, while the differential gear unit enables precise control of scroll conveyor operation.
Main Technical Parameters
| Model | XWLW355×1280-N | XWLW450×1260-N | XWLW500×1000-N | XWLW500×1250-N |
|---|---|---|---|---|
| Diameter of Revolving Drum (mm) | 355 | 450 | 500 | 500 |
| Length of Revolving Drum (mm) | 1280 | 1260 | 1000 | 1250 |
| Rate of Length versus Diameter (i) | 3.6 | 2.8 | 2 | 2.5 |
| Maximum speed (r/min) | 2500~3200 | 2400~3000 | 1600~1800 | 2400~2800 |
| Separation Factor (Fr) | 2035 | 2266 | 1100 | 2195 |
| Max processing capacity (m³/h) | 10~20 | 30-40 | 40~60 | 35~50 |
| Min separating point (μm) | 2 | 2 | 5 | 3 |
| Motor power (kW) | 22+7.5 | 37+7.5 | 30+7.5 | 37+11 |
| Weight (kg) | 2200 | 3000 | 2800 | 3500 |
| Overall dimensions (mm) | 3100×1470×1070 | 3100×1500×1070 | 2750×1580×1400 | 3060×1670×1400 |
| Type | Explosion-proof high-speed dual-frequency | Explosion-proof high-speed dual-frequency | Medium Speed | Explosion-proof high-speed dual-frequency |
