Sand Pump
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Model Number | XWSB10×8×14 / XWSB8×6×14 / XWSB8×6×11 / XWSB6×5×14 / XWSB6×5×11 / XWSB5×4×14 / XWSB4×3×13 / XWSB3×2×13 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Highlight | sand pump for solid control,industrial sand pump,sand pump equipment spare |
||
|---|---|---|---|
Product Description

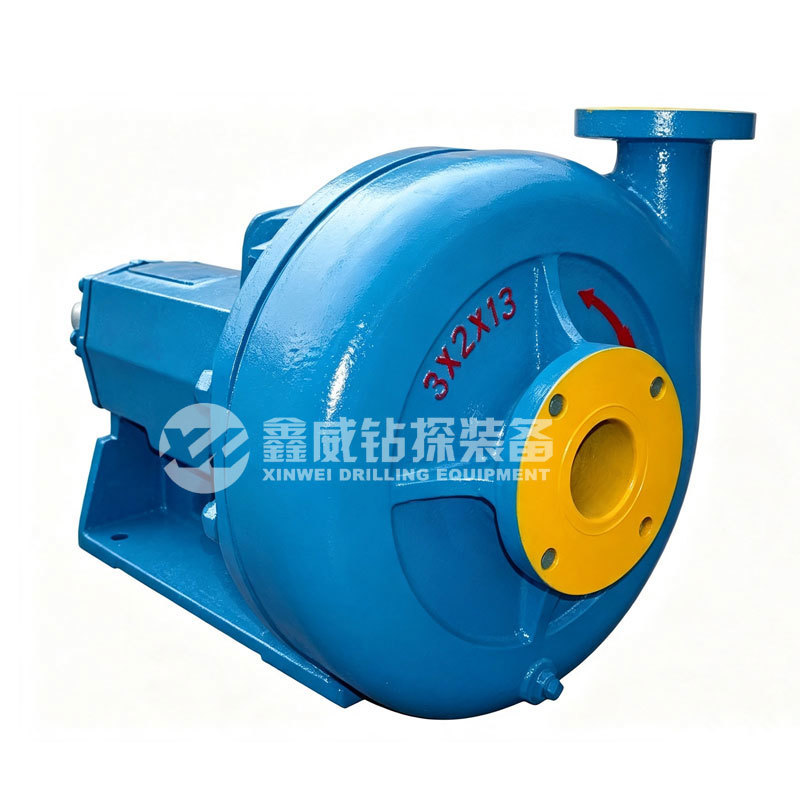

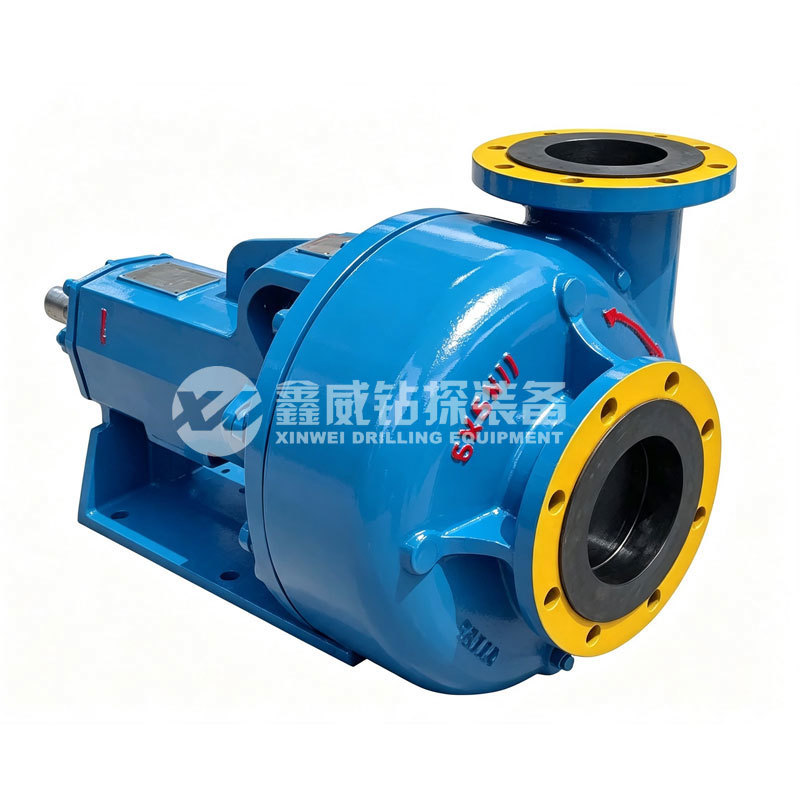

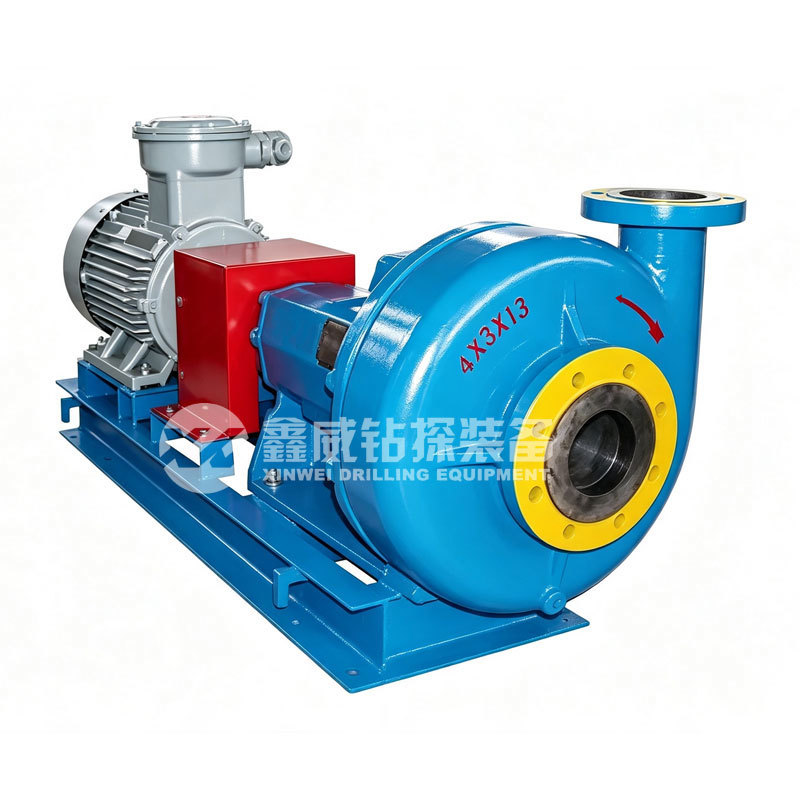

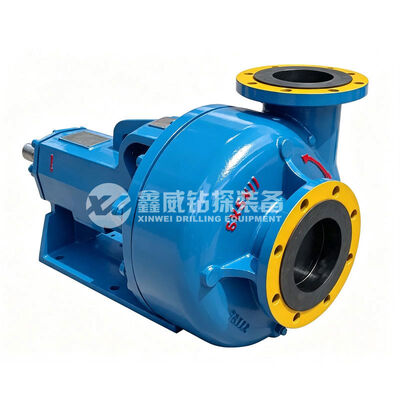

Sand Pump
The XWSB-series centrifugal sand pumps are specifically engineered to support circulating solid-control systems in oilfield drilling rigs. These pumps deliver drilling fluid with precise flow rates and pressures required for desanders, desilters, and mixers, ensuring optimal performance of solid-control equipment.
Key Features
- Interchangeable with US-brand MISSION pumps: All spare parts are fully compatible with MISSION pump components. Built to match MISSION-style dimensional standards, these pumps enjoy broad market acceptance across global markets.
- Comprehensive model range: The series includes 8 pump models, well-suited for supporting complete solid-control equipment packages. Common parts including bearing housings and shafts are shared among models, simplifying spare-parts management, maintenance, and reducing operating costs.
- Open-type impeller: Specifically designed for handling high-viscosity drilling fluid.
- Advanced sealing structure: Combined mechanical seal plus packing seal delivers reliable sealing performance and extended service life.
- Durable construction: Key components (pump casing, impeller, mechanical seal housing) are manufactured from wear-resistant ductile iron QT600-3, produced by resin-sand precision casting, ensuring long service life and superior appearance.
Technical Specifications
|
Model |
JSB10×8×14 |
JSB8×6×14 |
JSB8×6×11 |
JSB6×5×14 |
JSB6×5×11 |
JSB5×4×14 |
JSB4×3×13 |
JSB3×2×13 |
|
Discharge capacity |
260～300 m3/h |
240～260 m3/h |
220～240 m3/h |
200～220 m3/h |
120～200 m3/h |
80～120 m3/h |
60～80 m3/h |
50～60m3/h |
|
Pump Head |
28~33 |
28～33m |
24～28m |
24～28m |
24～28m |
24～28m |
22～28m |
22～28m |
|
Efficiency |
65% |
65% |
65% |
65% |
65% |
65% |
65% |
65% |
|
Motor power |
75/90 kW |
55/75 kW |
37/45 kW |
37/45/55 kW |
30/37/45 kW |
18.5/22/30 kW |
11/15 kW |
7.5/11 kW |
|
Motor speed |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
|
Inlet diameter |
10″ |
8″ |
8″ |
6″ |
6″ |
5″ |
4″ |
3″ |
|
Outlet diameter |
8″ |
6″ |
6″ |
5″ |
5″ |
4″ |
3″ |
2″ |
|
Weight |
1060/1140kg |
840/1035kg |
700/755kg |
665/720/795kg |
620/655/715kg |
525/535/615kg |
435/450kg |
365/420kg |
|
Overall dimensions(mm) |
2007×701×950 /2065×701×1015 |
1927×655×880 /1993×680×950 |
1855×648×850 /1880×648×850 |
1823×585×850 /1848×585×850 /1902×600×880 |
1762×522×814 /1822×585×850 /1847×585×850 |
1643×502×714 /1731×514×814 /1731×514×814 |
1531×495×674 /1571×495×674 |
1388×482×609 /1513×482×674 |
