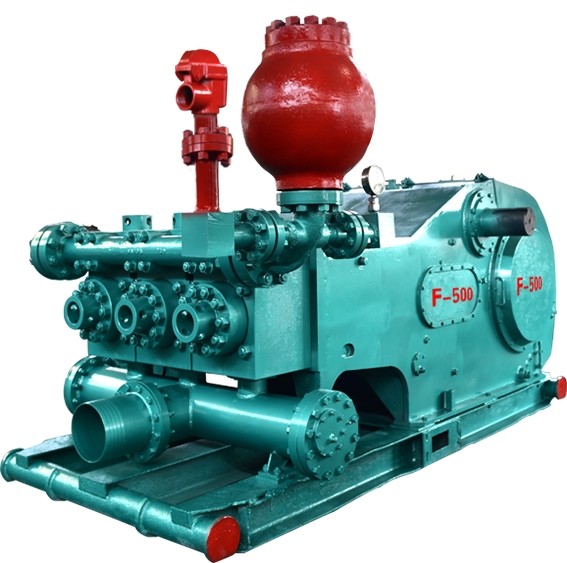

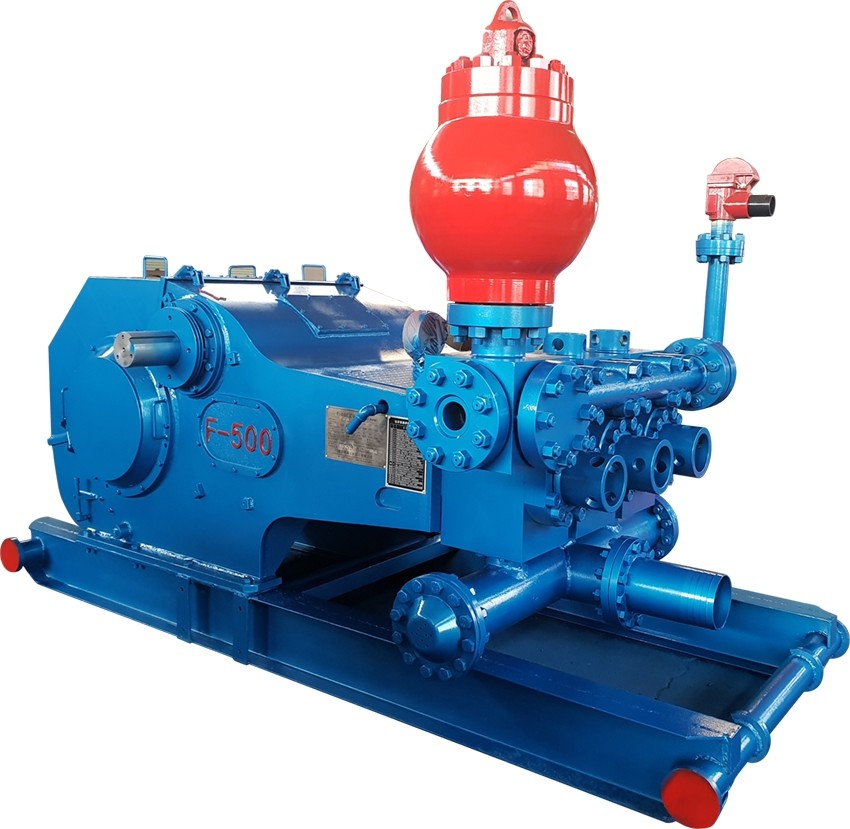

Herringbone Gear F Series Oil Rig Mud Pump 500hp 373KW
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-500 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Power Rating | 373 | Stroke Rating | 165 |
|---|---|---|---|
| Stroke Length | 7.5”/190.5 | Gear Ratio | 4.286 |
| Inlet Dia | 8”/203 | Outlet Dia | 4“Flange 5000psi |
| Highlight | Herringbone Gear Oil Rig Mud Pump,oil mud pump 500hp 373KW,F Series Oil Rig Mud Pump |
||
Product Description
500 hp/kw 3658*2709*2231 F-Series Triplex Mud Pump
- F-500 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | |||||||||
| Rated Input Power (KW/HP) | 373/500 | Gear Ratio | 4.286:1 | |||||||||
| Rated Stroke (SPM) | 165 | Lubrication | Forced & Splashing | |||||||||
| Stroke Length (mm/in) | 190.5/7.5〃 | Valve Cavity | API-5# | |||||||||
| Inlet Connection | 8〃(203mm) | Outlet Connection | 4〃Flange 5000psi | |||||||||
| Weight(Kg/Pound) | 9770/21540 | Overall Dimension (L×W×H) | 3658×2709×2231mm 144〃×106.65〃×87.8〃 | |||||||||
| SPM | Rated Power | Liner Dia. (in) and Pressure Rating (Mpa / psi) | ||||||||||
| 6-3/4 | 6-1/2 | 6 | 5-1/2 | 5 | 4-1/2 | 4 | ||||||
| 9.25 1340 | 9.97 1445 | 11.7 1695 | 13.93 2020 | 16.85 2445 | 20.81 3020 | 26.33 3820 | ||||||
| HP | KW | |||||||||||
| Displacement (L/S)/(gpm) | ||||||||||||
| 165 | 500 | 373 | 36.28 575 | 33.65 533 | 28.67 454 | 24.09 382 | 19.91 316 | 16.13 256 | 12.74 202 | |||
| 150 | 455 | 339 | 32.99 523 | 30.59 485 | 26.06 413 | 21.90 347 | 18.10 287 | 14.66 232 | 11.58 184 | |||
| 140 | 424 | 316 | 30.79 488 | 28.55 453 | 24.32 385 | 20.44 324 | 16.89 268 | 13.68 217 | 10.81 171 | |||
| 130 | 394 | 294 | 28.59 453 | 26.51 420 | 22.59 358 | 18.98 301 | 15.69 249 | 12.71 201 | 10.04 159 | |||
| 120 | 364 | 271 | 26.39 418 | 24.47 388 | 20.85 330 | 17.52 278 | 14.48 230 | 11.73 186 | 9.27 147 | |||
| 110 | 333 | 249 | 24.19 383 | 22.43 356 | 19.11 303 | 16.06 255 | 13.27 210 | 10.75 170 | 8.49 135 | |||
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||||||
Shandong XinWEI DRILLING EQUIPMENT Co., Ltd. is one of the most well-known manufacturers of trenchless equipment and oilfield equipment in China. After years of unremitting efforts, it has grown into a small but powerful enterprise. Our products cover the entire field, trenchless, from a very small spare part to a very large complete rig system. Our MAIN PRODUCTS are: pump SPARE parts, mud pumps and complete sets of equipment, DC/AC motor, solid control equipment, power plant, vehicle drilling rig, workover rig, land drilling rig, drill pipe and drilling tools, etc. Based on the needs of customers, to provide customers with the best products and services. We focus on providing the best solutions for the maintenance and supply of equipment and spare parts to our overseas oilfield customers.
We welcome the establishment of win-win cooperation with partners all over the world, every customer is our God and helper. Warmly welcome you to visit China!
