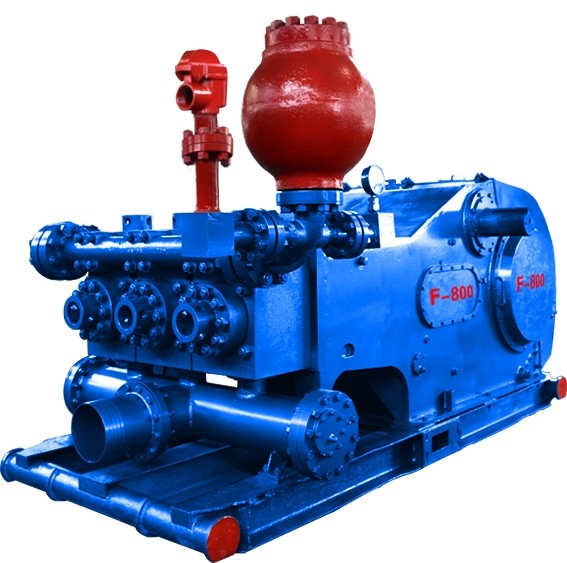

800hp Oilfield Triplex Piston Mud Pump API-6 5-1/8'' Flange 5000psi
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-800 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Product Details
| Power Rating | 597 | Stroke Rating | 150 |
|---|---|---|---|
| Stroke Length | 9“/228.6 | Gear Ratio | 4.185 |
| Inlet Dia | 10“/254 | Outlet Dia | 5-1/8"Flange 5000psi |
| Highlight | 800hp Triplex Piston Mud Pump,oilfield mud pump 5-1/8'' Flange 5000psi,Triplex Piston Mud Pump API-6 |
||
Product Description
800 hp/kw 3963*2025*2410 F-Series Triplex Mud Pump
- F-800 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | ||||||||
| Rated Input Power (KW/HP) | 597/800 | Gear Ratio | 4.185:1 | ||||||||
| Rated Stroke (SPM) | 150 | Lubrication | Forced & Splashing | ||||||||
| Stroke Length (mm/in) | 228.6/9〃 | Valve Cavity | API-6# | ||||||||
| Inlet Connection | 10〃(254mm) | Outlet Connection | 5 1/8〃Flange 5000PSI | ||||||||
| Weight(Kg/Pound) | 14500/31970 | Overall Dimension (L×W×H) | 3963×3146×2321mm | ||||||||
| SPM | Rated Power | Liner Dia.(in) and Pressure Rating (Mpa)/(psi) | |||||||||
| 6-3/4 | 6-1/2 | 6-1/4 | 6 | 5-1/2 | 5 | 4-1/2 | 4 | ||||
| 13.56 1965 | 14.63 2120 | 15.82 2295 | 17.16 2490 | 20.43 2965 | 24.72 3585 | 30.51 4425 | 35 5075 | ||||
| HP | KW | ||||||||||
| Displacement (L/S)/(gpm) | |||||||||||
| 150 | 800 | 597 | 39.58 627 | 36.70 582 | 33.94 538 | 31.27 496 | 26.28 417 | 21.72 344 | 17.59 279 | 13.90 220 | |
| 140 | 747 | 557 | 36.94 586 | 34.26 543 | 31.67 502 | 29.19 463 | 24.53 389 | 20.27 321 | 16.42 260 | 12.97 206 | |
| 130 | 693 | 517 | 34.30 544 | 31.81 504 | 29.41 466 | 27.10 430 | 22.78 361 | 18.82 298 | 15.25 242 | 12.05 191 | |
| 120 | 640 | 477 | 31.67 502 | 29.36 465 | 27.15 430 | 25.02 397 | 21.02 333 | 17.37 275 | 14.07 223 | 11.12 176 | |
| 110 | 587 | 438 | 29.03 460 | 26.92 427 | 24.89 395 | 22.93 363 | 19.27 305 | 15.93 252 | 12.90 204 | 10.19 162 | |
| Based on 100% volumetric efficiency and 90% mechanical efficiency | |||||||||||
