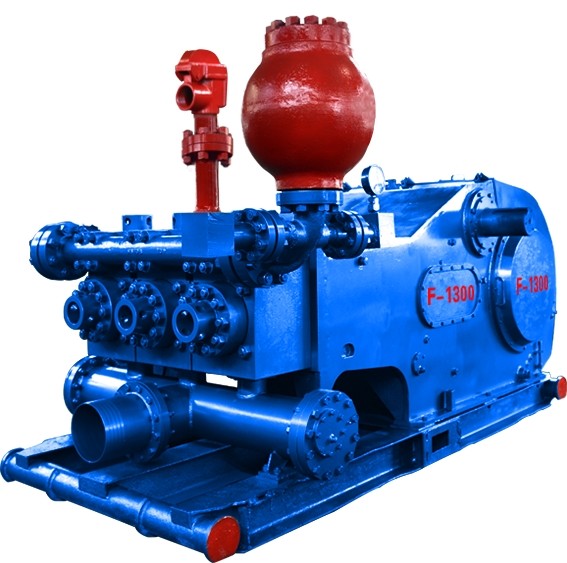

F Series Triplex Drilling Mud Pump 1300hp 5-1/8" Flange 5000psi
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-1300 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
Product Details
| Power Rating | 969 | Stroke Rating | 120 |
|---|---|---|---|
| Stroke Length | 12"/305 | Gear Ratio | 4.206 |
| Inlet Dia | 12"/305 | Outlet Dia | 5-1/8" Flange 5000psi |
| Highlight | Triplex Drilling Mud Pump 1300hp,Drilling Mud Pump 5-1/8" Flange 5000psi,F Series Triplex Drilling Mud Pump |
||
Product Description
1300 hp/kw 4617*3260*2600 F-Series Triplex Mud Pump Drilling Mud Pup
F-1300 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | |||||||||
Rated Input Power | 969/1300 | Gear Ratio | 4.206:1 | |||||||||
| Rated Stroke (SPM) | 120 | Lubrication | Forced & Splashing | |||||||||
| Stroke Length (mm/in) | 305/12〃 | Valve Cavity | API-7# | |||||||||
| Inlet Connection | 12〃(305mm) | Outlet Connection | 5 1/8〃Flange 5000PSI | |||||||||
| Weight(Kg/Pound) | 24572/54170 | Overall Dimension | 4615×3276×2688mm | |||||||||
| SPM | Rated Power | Liner Dia.(in) and Pressure Rating (Mpa / psi) | ||||||||||
| 7 | 6-3/4 | 6-1/4 | 6 | 5-1/2 | 5 | |||||||
19.17 | 20.65 | 24.07 | 26.16 | 31.13 | 35 | |||||||
| HP | KW | |||||||||||
| Displacement (L/S)/(gpm) | ||||||||||||
| 120 | 1300 | 969 | 45.41 | 42.23 | 36.20 | 33.36 | 28.04 | 23.17 | ||||
| 110 | 1192 | 883 | 41.63 | 38.71 | 33.19 | 30.58 | 25.70 | 21.24 | ||||
| 100 | 1083 | 803 | 37.84 | 35.19 | 30.17 | 27.80 | 23.36 | 19.31 | ||||
| 90 | 975 | 727 | 34.06 | 31.67 | 27.15 | 25.02 | 21.03 | 17.38 | ||||
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||||||
