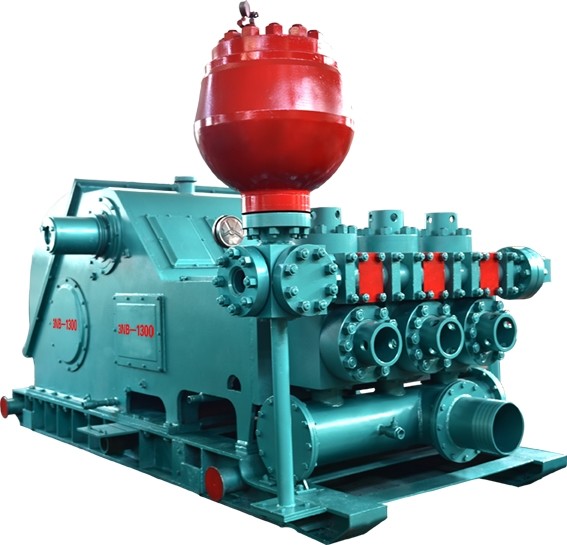

1300hp Reciprocating Triplex Pump Oil And Gas Single Acting Piston
1300hp Reciprocating Triplex Pump Oil And Gas Single Acting Piston
Basic Properties
Country Of Origin
China
Brand Name
XW
Certificate
ISO9000
PRODUCT MODEL
3
Trading Properties
MOQ
1
Payment Method
T/T
Supply Capacity
100
Product Summary
1300 hp/kw 4300*2450*2513 3NB Series Cementing Pump 3NB-1300泥浆泵技术参数表 型号Model 型式Type 输入功率Input power 额定泵速Rated pumpSpeed 冲程长度Stroke length 齿轮传送比Gear ratio 主动轮额定转速转/分Drive Wheel Rated speed R/Min 3NB-1300 三缸单作用Triplex Single-Acting piston pump 755kw1300(hp) 125冲/分Stroke/Min 305mm 4.194 503 吸入管径Dia.of ...
Product Details
Highlight:
1300hp triplex pump oil and gas
,Single Acting Piston reciprocating triplex pump
,1300hp Reciprocating Triplex Pump
Power Pating:
955
Stroke Rating:
120
Stroke Length:
305
Gear Ratio:
4.194
Inlet Dia:
305
Outlet Dia:
101
Product Description
1300 hp/kw 4300*2450*2513 3NB Series Cementing Pump
3NB-1300泥浆泵技术参数表
| 型号Model | 型式Type | 输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
||||||||
| 3NB-1300 | 三缸单作用 Triplex Single-Acting piston pump |
755kw 1300(hp) |
125冲/分 Stroke/Min |
305mm | 4.194 | 503 | ||||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold | 外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
||||||||||
| 305mm | 101mm | 4300×2450×2513 | 21500 | 20000 | ||||||||||
|
性能参数表
|
||||||||||||||
| 缸套直径(Cylinder dia) mm | ||||||||||||||
| 泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф130 | Ф140 | ф150 | ф160 | ф170 | ф180 | ф190 | |||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | ||||||||||||||
| 120 | 24.28 | 28.16 | 32.32 | 36.78 | 41.52 | 46.54 | 51.86 | |||||||
| 110 | 22.25 | 25.81 | 29.63 | 33.71 | 38.06 | 42.67 | 47.54 | |||||||
| 100 | 20.23 | 23.46 | 26.94 | 30.65 | 34.60 | 38.79 | 43.22 | |||||||
| 90 | 18.21 | 21.12 | 24.24 | 27.58 | 31.14 | 34.91 | 38.89 | |||||||
| 80 | 16.19 | 18.77 | 21.55 | 24.52 | 27.68 | 31.03 | 34.57 | |||||||
| 泵压Pump pressure(Mpa) | 35 | 31 | 27 | 24 | 21 | 19 | 17 | |||||||
| 机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. | ||||||||||||||
