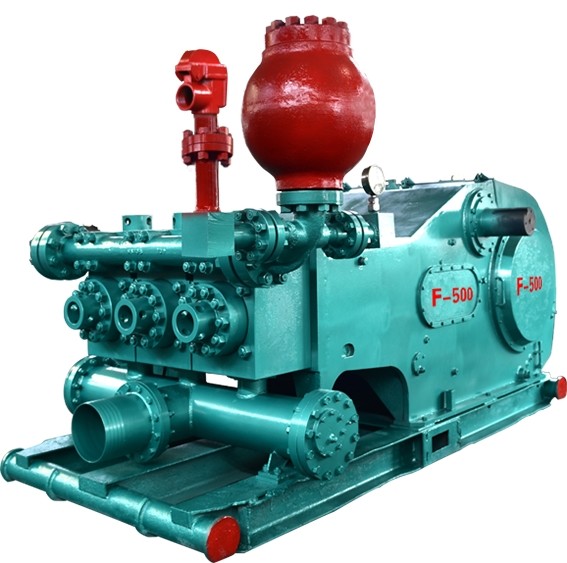

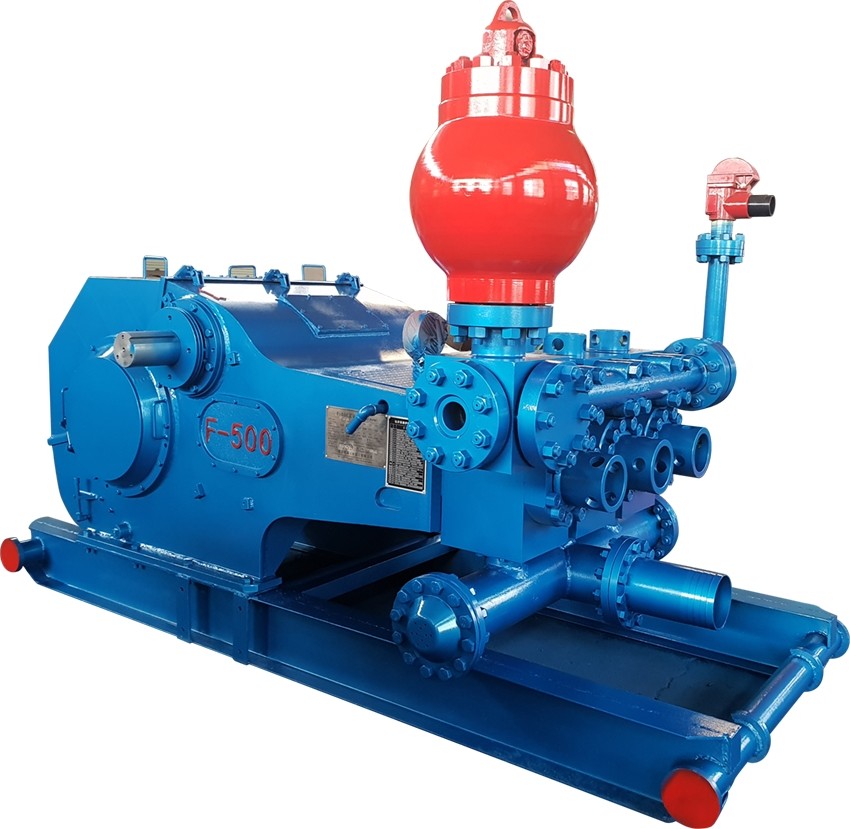

500hp F Series Oilwell Triplex Pumps Emsco Mud Pump API 7K
| Place of Origin | China |
|---|---|
| Brand Name | XW |
| Certification | ISO9000 |
| Model Number | F-500 |
| Minimum Order Quantity | 1 |
| Delivery Time | 30 |
| Payment Terms | T/T |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Rating | 373 | Stroke Rating | 165 |
|---|---|---|---|
| Stroke Length | 7.5”/190.5 | Gear Ratio | 4.286 |
| Inlet Dia | 8”/203 | Outlet Dia | 4“Flange 5000psi |
| Highlight | 500hp F Series Oilwell Triplex Pumps,Emsco Mud Pump API 7K,Oilwell Triplex Pumps API 7K |
||
Product Description
500 hp/kw 3658*2709*2231 F-Series Triplex Mud Pump Oilwell Triplex Pumps
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .
- F-500 Technical Specifications
| Type | Horizontal Triplex Single Acting Piston Pump | Gear Type | Herringbone Gear | |||||||||
|
Rated Input Power (KW/HP) |
373/500 | Gear Ratio | 4.286:1 | |||||||||
| Rated Stroke (SPM) | 165 | Lubrication | Forced & Splashing | |||||||||
| Stroke Length (mm/in) | 190.5/7.5〃 | Valve Cavity | API-5# | |||||||||
| Inlet Connection | 8〃(203mm) | Outlet Connection | 4〃Flange 5000psi | |||||||||
| Weight(Kg/Pound) | 9770/21540 |
Overall Dimension (L×W×H) |
3658×2709×2231mm 144〃×106.65〃×87.8〃 |
|||||||||
| SPM | Rated Power | Liner Dia. (in) and Pressure Rating (Mpa / psi) | ||||||||||
| 6-3/4 | 6-1/2 | 6 | 5-1/2 | 5 | 4-1/2 | 4 | ||||||
|
9.25 1340 |
9.97 1445 |
11.7 1695 |
13.93 2020 |
16.85 2445 |
20.81 3020 |
26.33 3820 |
||||||
| HP | KW | |||||||||||
| Displacement (L/S)/(gpm) | ||||||||||||
| 165 | 500 | 373 |
36.28 575 |
33.65 533 |
28.67 454 |
24.09 382 |
19.91 316 |
16.13 256 |
12.74 202 |
|||
| 150 | 455 | 339 |
32.99 523 |
30.59 485 |
26.06 413 |
21.90 347 |
18.10 287 |
14.66 232 |
11.58 184 |
|||
| 140 | 424 | 316 |
30.79 488 |
28.55 453 |
24.32 385 |
20.44 324 |
16.89 268 |
13.68 217 |
10.81 171 |
|||
| 130 | 394 | 294 |
28.59 453 |
26.51 420 |
22.59 358 |
18.98 301 |
15.69 249 |
12.71 201 |
10.04 159 |
|||
| 120 | 364 | 271 |
26.39 418 |
24.47 388 |
20.85 330 |
17.52 278 |
14.48 230 |
11.73 186 |
9.27 147 |
|||
| 110 | 333 | 249 |
24.19 383 |
22.43 356 |
19.11 303 |
16.06 255 |
13.27 210 |
10.75 170 |
8.49 135 |
|||
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||||||
