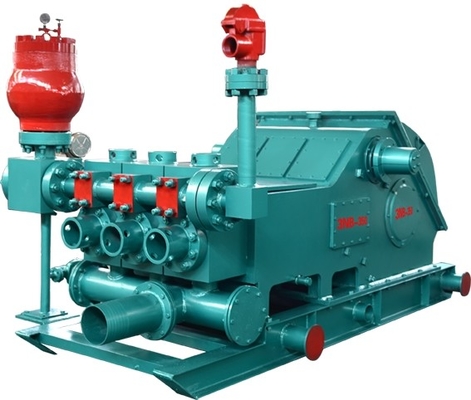

275kw Cementing Pump 3NB350 Mud Pump Well Drilling ISO9001
275kw Cementing Pump 3NB350 Mud Pump Well Drilling ISO9001
Basic Properties
Country Of Origin
china
Brand Name
XW
Certificate
ISO9000
PRODUCT MODEL
3NB350
Trading Properties
MOQ
1
Payment Method
T/T
Supply Capacity
100
Product Summary
350 hp/kw 3600*2080*2015 3NB Series Cementing Pump 3NB-350泥浆泵技术参数表 型号Model 型式Type 输入功率 Input power 额定泵速 Rated pumpSpeed 冲程长度 Stroke length 齿轮传送比 Gear ratio 主动轮额定转速转/分 Drive Wheel Rated speed R/Min 3NB-350 三缸单作用 Triplex Single-Acting piston pump 275kw 350(hp) 130冲/分 Stroke/Min 180mm 130/29 582.8 吸入管...
Product Details
Highlight:
275kw Cementing Pump
,Mud Pump Well Drilling ISO9001
,3NB350 Mud Pump Well Drilling
Power Rating:
350
SPM:
130
Stroke Length:
180
Gear Ratio:
4.483
Inlet Dia:
203
Outlet Dia:
76
Product Description
350 hp/kw 3600*2080*2015 3NB Series Cementing Pump
3NB-350泥浆泵技术参数表
| 型号Model | 型式Type |
输入功率 Input power |
额定泵速 Rated pumpSpeed |
冲程长度 Stroke length |
齿轮传送比 Gear ratio |
主动轮额定转速转/分 Drive Wheel Rated speed R/Min |
|||||||||||
| 3NB-350 |
三缸单作用 Triplex Single-Acting piston pump |
275kw 350(hp) |
130冲/分 Stroke/Min |
180mm | 130/29 | 582.8 | |||||||||||
| 吸入管径Dia.of Suction Manifold | 排出管径Dia.of Discharge Manifold |
外形尺寸(立方毫米) Overall size mm3 |
重量 Weight(kg) |
不含大皮带轮,空气包重(kg) Not including the Big Belt and pulsation Dampener Weight |
|||||||||||||
| 190mm | 101mm | 3600×2080×2015 | 8058 | 7500 | |||||||||||||
性能参数表
| 缸套直径(Cylinder dia) mm | |||||||||||||||||
|
泵速(冲/分) Pump Speed(Stroke/Min.) |
Ф90 | ф100 | ф110 | ф120 | ф130 | ф140 | ф150 | ф160 | |||||||||
| 理论排量(升/秒)Theoratic Displacement(L/S)(GPM) | |||||||||||||||||
| 130 | 7.44 | 9.18 | 11.11 | 13.23 | 15.52 | 18.00 | 20.67 | 23.51 | |||||||||
| 120 | 6.87 | 8.48 | 10.26 | 12.21 | 14.33 | 16.62 | 19.08 | 21.7 | |||||||||
| 110 | 6.29 | 7.77 | 9.40 | 11.19 | 13.13 | 15.23 | 17.49 | 19.90 | |||||||||
| 100 | 5.72 | 7.07 | 8.55 | 10.17 | 11.94 | 13.85 | 15.90 | 18.09 | |||||||||
| 泵压Pump pressure(Mpa) | 31.0 | 25.0 | 20.8 | 17.5 | 14.9 | 12.8 | 11.2 | 9.8 | |||||||||
| 机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%. | |||||||||||||||||
