3NB1000 Cementing Pump High Pressure Mud Pump 125SPM

  • 3NB1000 Cementing Pump High Pressure Mud Pump 125SPM
Place of Origin China
Brand Name XW
Certification ISO9000
Model Number 3NB1000
Minimum Order Quantity 1
Delivery Time 30
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Rating 1000 SPM 125
Gear Ratio 3.482 Inlet Dia 254
Outlet Dia 101 Stroke Length 273
Highlight

3NB1000 Cementing Pump

,

High Pressure Mud Pump 125SPM

,

3NB1000 High Pressure Mud Pump
Leave a Message
Product Description

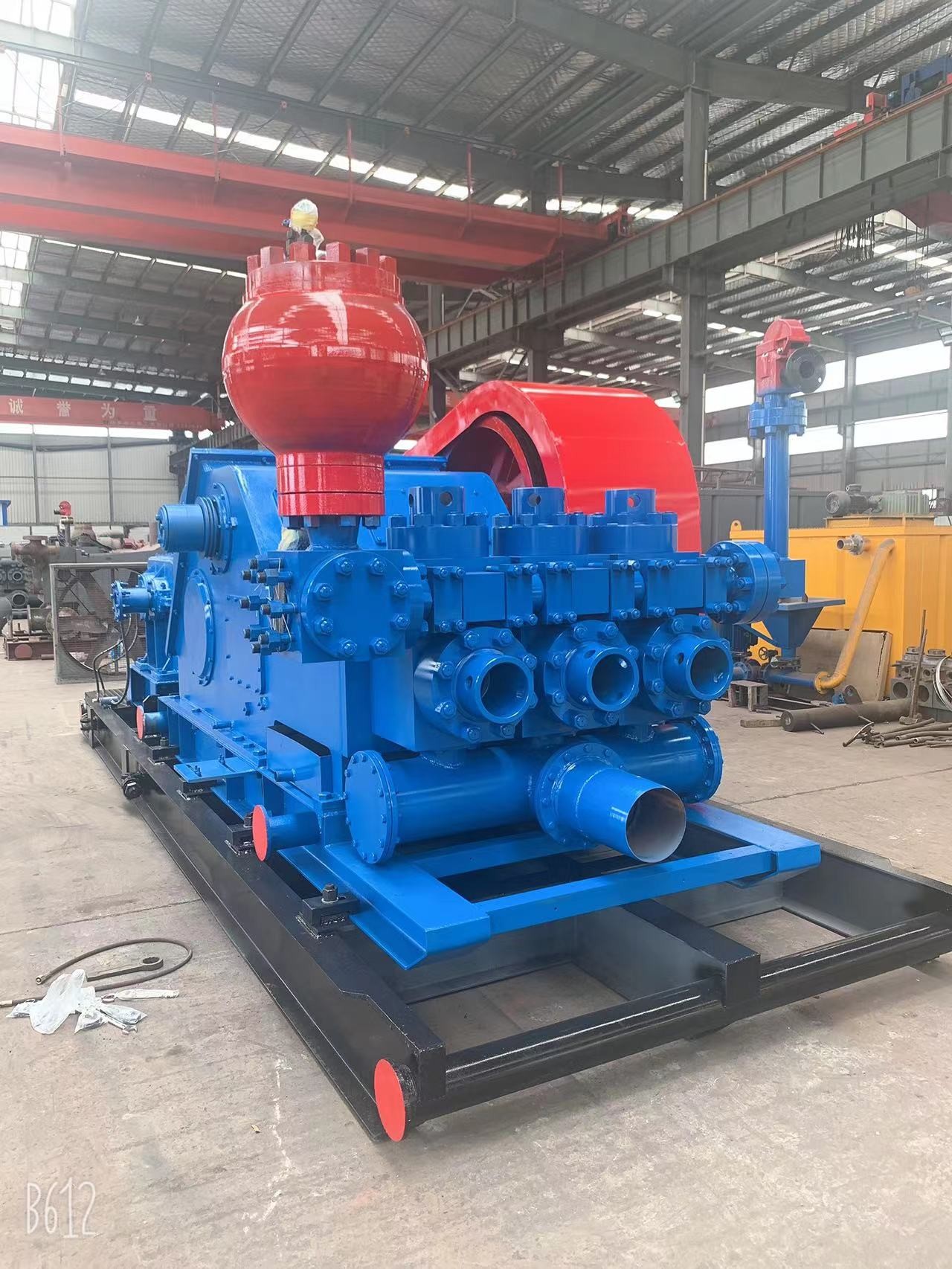

1000 hp/kw 3900*2240*2052 3NB Series Cementing Pump​3NB1000 Cementing Pump High Pressure Mud Pump 125SPM 0



3NB1000 Cementing Pump High Pressure Mud Pump 125SPM 1


3NB-1000泥浆泵技术参数表


型号Model型式Type

输入功率

Input power

额定泵速

Rated pumpSpeed

冲程长度

Stroke length

齿轮传送比

Gear ratio

主动轮额定转速转/分

Drive Wheel Rated speed R/Min

3NB-1000

三缸单作用

Triplex Single-Acting piston pump

735kw

1000(hp)

125冲/分

Stroke/Min

274mm3.482435.25
吸入管径Dia.of Suction Manifold排出管径Dia.of Discharge Manifold

外形尺寸(立方毫米)

Overall size mm3

重量

Weight(kg)

不含大皮带轮,空气包重(kg)

Not including the Big Belt and pulsation Dampener Weight

254mm101mm3900×2240×20521750016000



性能参数表



  缸套直径(Cylinder dia) mm

泵速(冲/分)

Pump Speed(Stroke/Min.)

Ф120Ф130ф140ф150ф160ф170ф180
理论排量(升/秒)Theoratic Displacement(L/S)(GPM)
12519.2922.6426.2530.1434.2938.7143.40
12018.5221.7325.2028.9332.9237.1641.66
11016.9719.9223.1026.5230.1734.0638.19
10015.4318.1121.0024.1127.4330.9734.72
9013.8916.3018.9021.7024.6927.8731.25
泵压Pump pressure(Mpa)35332824211915
机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
